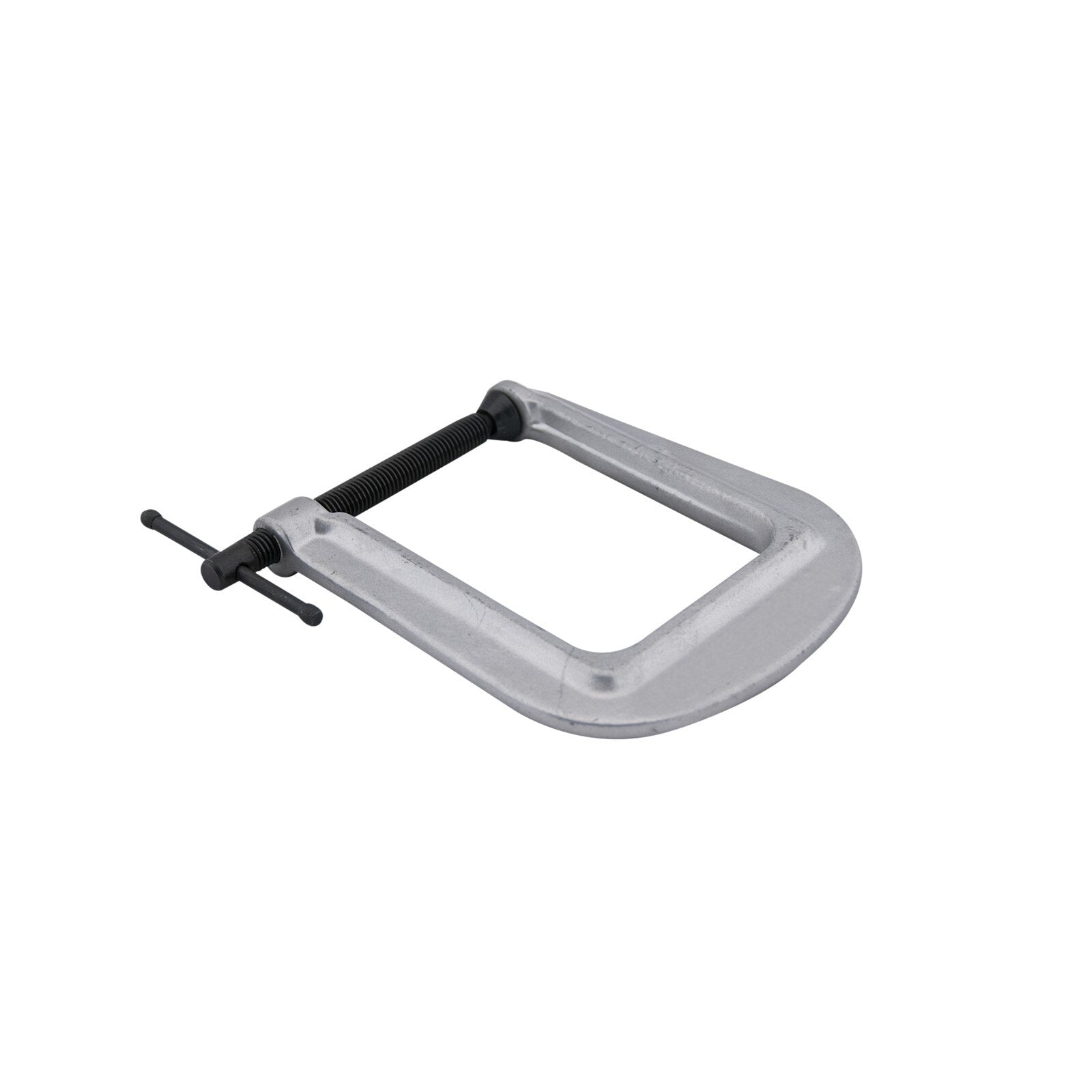

Wilton 42525 Deep-reach C-clamp 2.5 in Jaw 4 in Throat

Product Description

The WILTON 42525 is a deep-reach C-clamp engineered for applications that require extended throat depth and reliable clamping force. With a 2-1/2 inch jaw opening and a 4 inch throat depth, this clamp reaches further into a workpiece than a standard C-clamp, making it well-suited for clamping operations where the work surface is set back from the edge. Trade professionals working in fabrication, welding, pipefitting, and general mechanical assembly rely on deep-reach C-clamps when standard-depth tools cannot position properly on the workpiece.

The WILTON 42525 is appropriate for use in both residential and commercial trade settings including metal fabrication shops, mechanical rooms, and job-site assembly work. It is commonly used by pipefitters, welders, ironworkers, and general contractors who need a secure, stationary clamp hold during fitting, tacking, or fastening operations. The extended throat depth is particularly useful when clamping flanged materials, pipe sections, or assemblies where the clamping point sits well inboard of the material edge.

Key Features

• 2-1/2 inch jaw opening accommodates a wide range of material thicknesses
• 4 inch throat depth provides extended reach beyond the material edge
• Deep-reach design suited for inboard clamping on flanged or recessed workpieces
• Sold individually as a single unit

Compatibility

Designed as a general-purpose deep-reach C-clamp for use across fabrication, welding, and mechanical assembly applications where extended throat depth is required.

Installation Notes

C-clamps of this type are positioned and tightened by hand using the threaded screw spindle. Apply force evenly and avoid over-torquing the spindle, which can damage the workpiece or distort the clamp frame. Use swivel pads or soft jaw covers when clamping finished or soft surfaces. Inspect the clamp frame and screw threads before each use and remove from service if cracks or deformation are present.

Technical Specifications

• Jaw Opening: 2-1/2 inches
• Throat Depth: 4 inches
• Unit of Measure: Each
• Minimum Order Quantity: 1
• UPC: 019907425250

Standard Information

• Brand: WILTON
• Manufacturer Part Number: 42525
