Wilton 28833 Machinist Bench Vise Swivel Base 6 in Jaw

Product Description

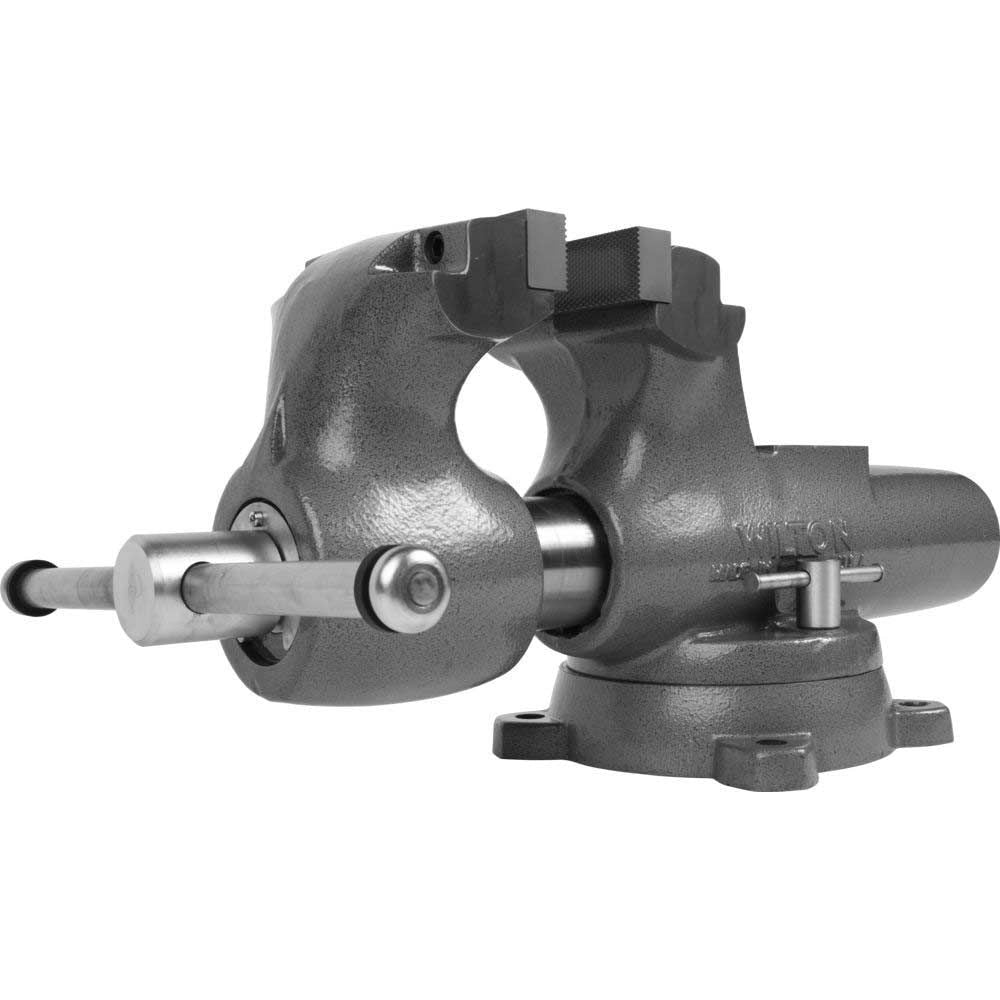

The WILTON 28833 is a swivel-base machinist bench vise designed for heavy-duty workholding in machine shops, fabrication environments, and industrial maintenance settings. The vise features a 6-inch jaw width and a 10-inch jaw opening, giving technicians and machinists the capacity to grip a wide range of workpiece sizes securely. A 5.5-inch throat depth allows clearance for larger stock. At 156 pounds, this is a substantial cast unit intended for permanent bench mounting where rigidity and holding force are priorities. Licensed machinists and maintenance professionals are the primary installers and users of this vise.

This vise is suited for use in professional machine shop environments, metal fabrication shops, and heavy industrial maintenance applications. The swivel base allows the vise to rotate and lock at multiple positions, making it adaptable for angled work without repositioning the workpiece. It is appropriate for milling, drilling, filing, and general-purpose metalworking operations where a fixed bench vise is standard equipment.

Key Features

• 6-inch jaw width provides a broad gripping surface for large or irregular workpieces
• 10-inch jaw opening accommodates a wide range of stock sizes
• 5.5-inch throat depth adds clearance for bulkier workpieces
• Swivel base allows rotation and locking at multiple positions for angled work
• Heavyweight 156-pound construction promotes stability and vibration resistance during machining operations
• Replaces WIL10031 for direct OEM-style service replacement

Compatibility

This unit is a direct replacement for WIL10031 and is compatible with standard heavy-duty machinist bench vise applications requiring a 6-inch jaw swivel-base configuration.

Installation Notes

Installation should be performed by a qualified machinist or millwright. The vise must be bolted to a rigid, load-rated workbench capable of supporting the unit weight plus anticipated workpiece and operational loads. Use appropriate fastener sizes and torque per the bench manufacturer specifications. Confirm the swivel lock mechanism engages fully before applying clamping force to a workpiece.

Technical Specifications

• Jaw Width: 6 inches
• Jaw Opening: 10 inches
• Throat Depth: 5.5 inches
• Weight: 156 pounds
• Base Type: Swivel
• UPC: 731325760576
• Sold As: Each

Standard Information

• Brand: WILTON
• Manufacturer Part Number: 28833
