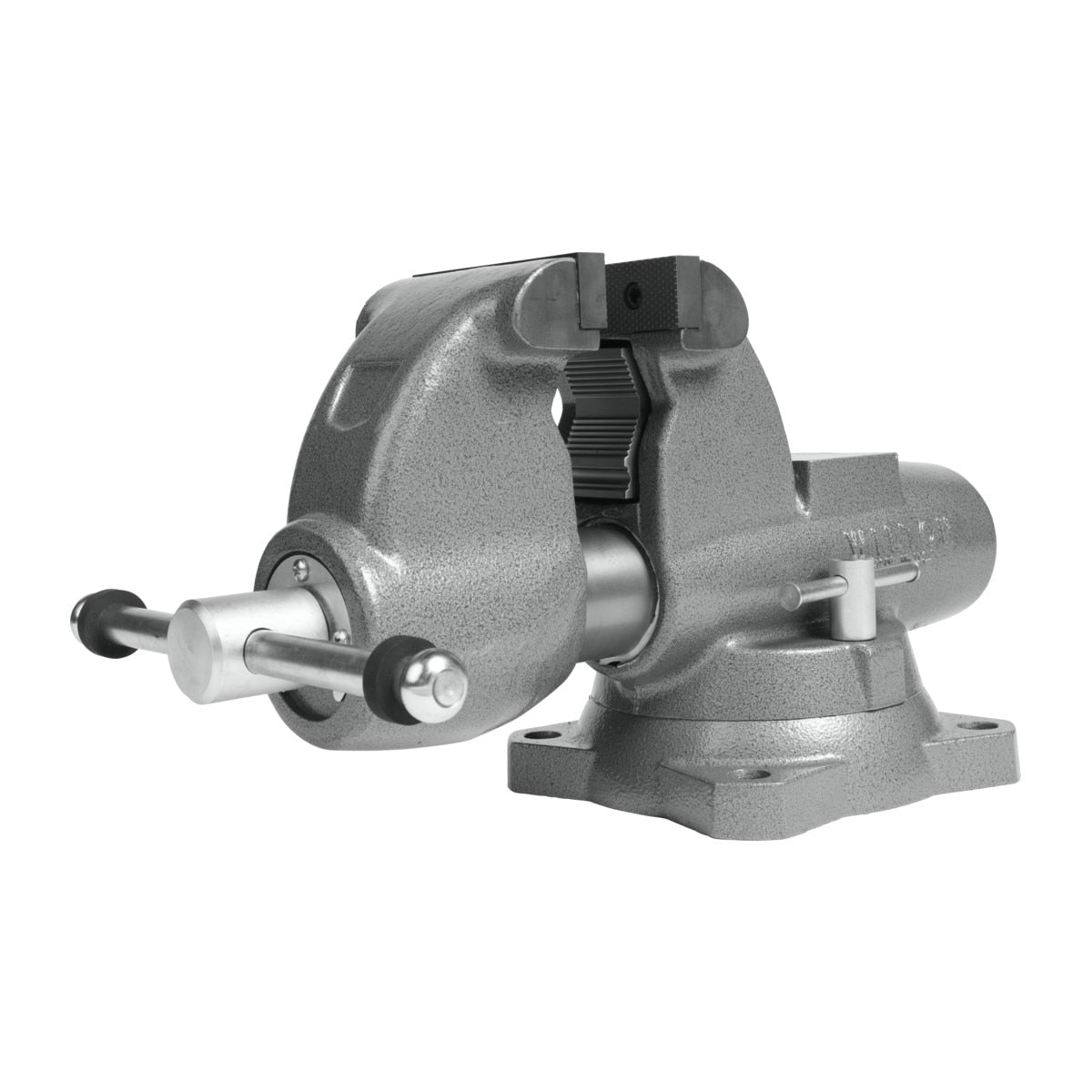

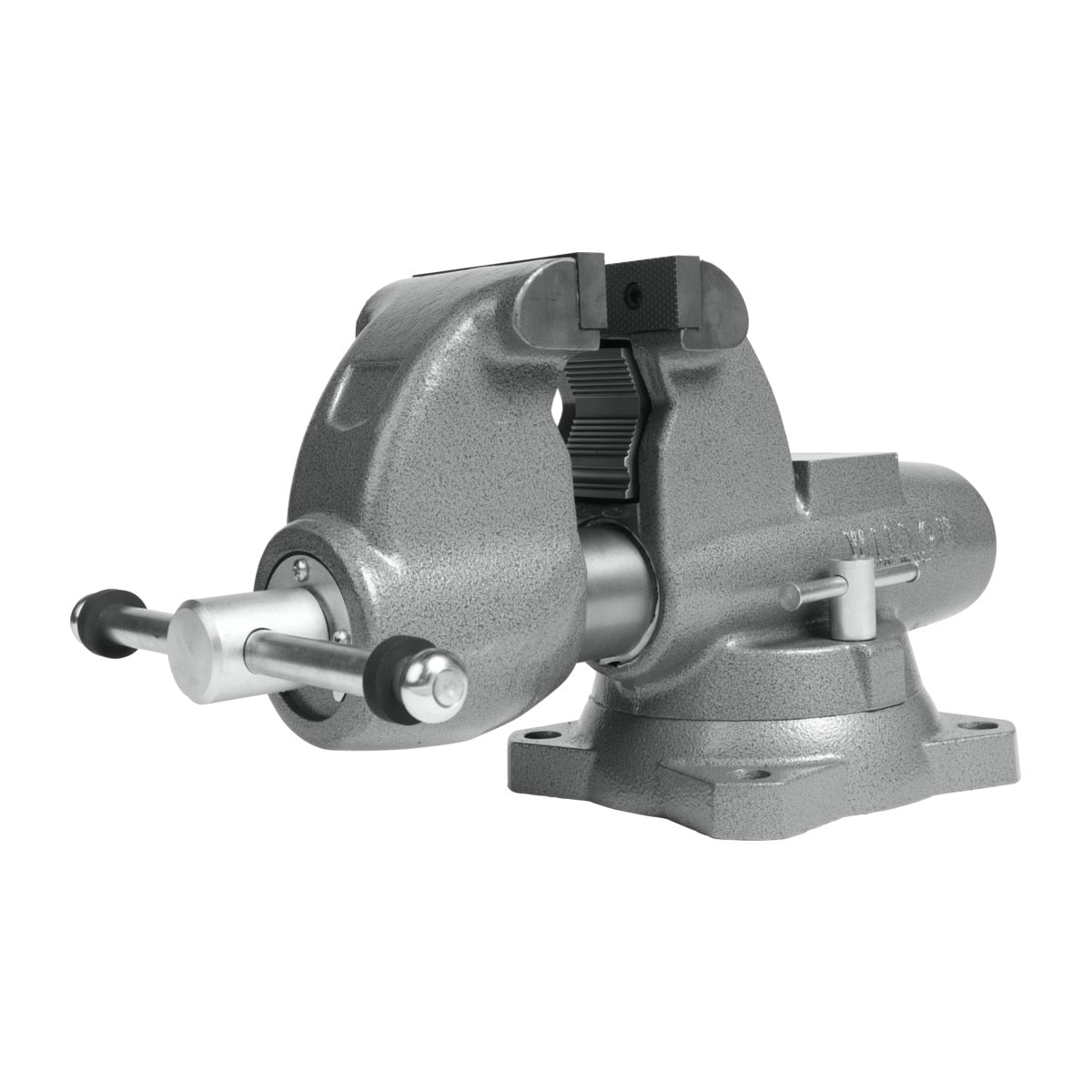

Wilton 28826 Combination Pipe Bench Vise Swivel Base

Product Description

The WILTON 28826 is a combination pipe and bench vise designed for heavy-duty trade use in plumbing, pipefitting, and general mechanical work. It features a 4.5-inch jaw width, a 6-inch jaw opening, and a 4.75-inch throat depth, giving technicians the clamping range needed for both flat stock and round pipe. The round channel jaw design grips pipe securely without slipping, while the swivel base allows the vise to rotate to a working angle and lock in place. At 78 pounds, this is a substantial bench-mounted tool built for shop and field service environments.

This vise suits residential and commercial plumbing shops, pipefitting operations, HVAC fabrication benches, and mechanical service bays. The swivel base is particularly useful when working on long pipe runs or awkward assemblies, allowing the workpiece orientation to change without repositioning on the bench. The combined pipe and flat jaw functionality means one vise handles both tasks, reducing the need for dedicated units on the same bench.

Key Features

• 4.5-inch jaw width accommodates flat stock and standard pipe sizes
• 6-inch jaw opening provides range for larger workpieces and assemblies
• 4.75-inch throat depth allows clearance for bulkier work
• Round channel jaw design grips pipe without deformation or slipping
• Swivel base rotates and locks for multi-angle clamping
• 78-pound cast construction delivers stability under load

Compatibility

Designed as a bench-mounted combination pipe and bench vise suitable for standard plumbing, pipefitting, and mechanical service workbenches.

Installation Notes

Installation is performed by a plumber, pipefitter, or mechanic mounting the vise to a solid hardwood or steel workbench. Use appropriately sized bolts through the base mounting holes and torque to the bench manufacturer or shop standard. Ensure the bench surface can support the static and dynamic load of the vise and workpiece before mounting. Always secure the swivel base lock before applying clamping force.

Technical Specifications

• Jaw Width: 4.5 inches
• Jaw Opening: 6 inches
• Throat Depth: 4.75 inches
• Jaw Style: Round Channel
• Base Type: Swivel Base
• Weight: 78 pounds

Standard Information

• Brand: WILTON
• Manufacturer Part Number: 28826
