Wilton 1700150 Spindle Assembly for 404SE C-C (4-1/4in Thread Length) Replacement 1700150

Product Description

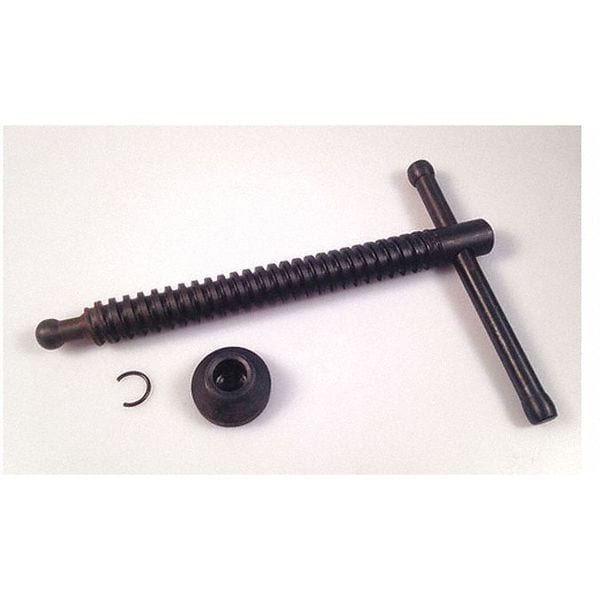

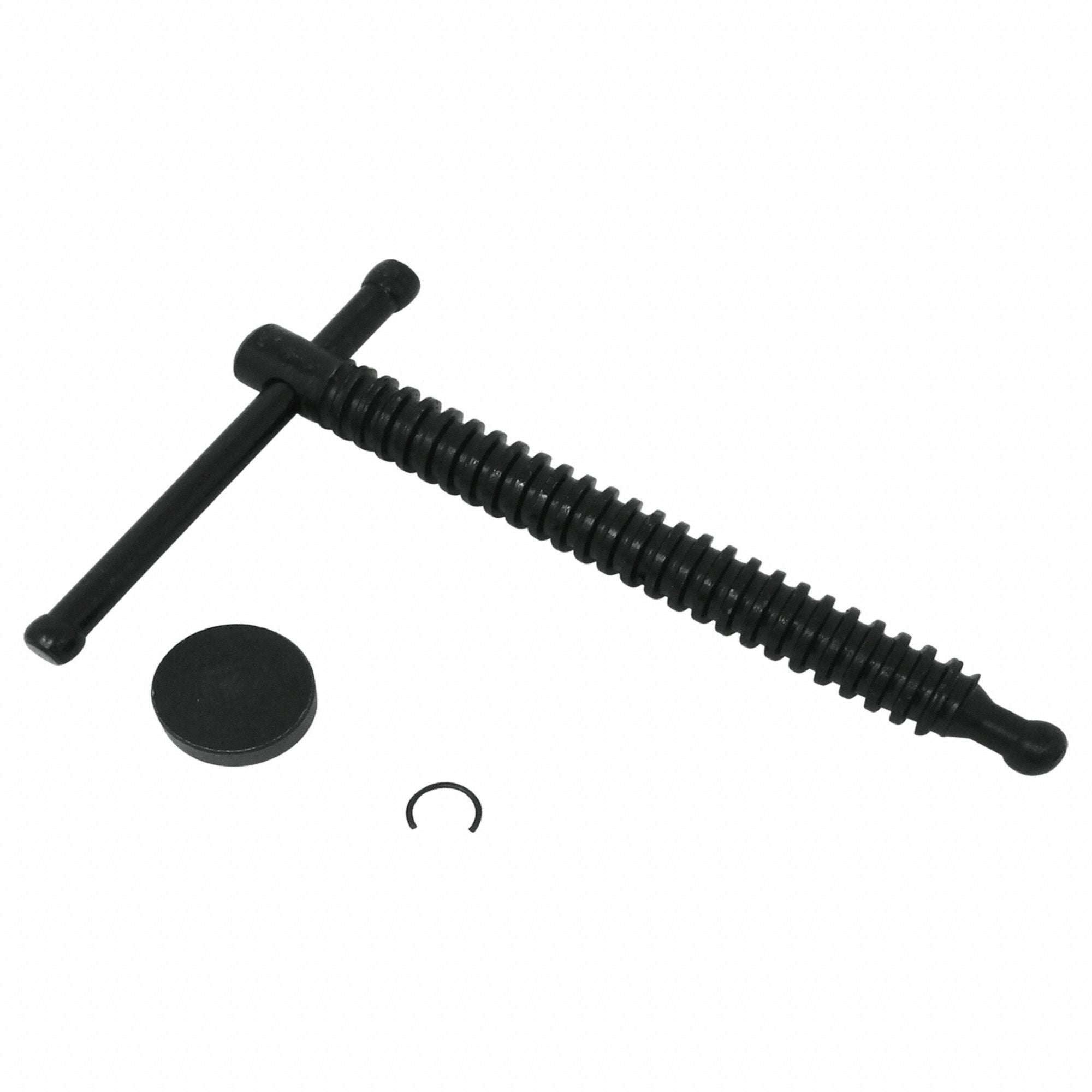

Wilton 1700150 is a spindle assembly for 404SE C-C that provides the threaded screw used to adjust the movable jaw on compatible C-clamps. The part features a 4.25 in thread length, a 0.75 in tip diameter, and a black oxide coating. It is compatible with multiple Wilton clamp models including 400-SF, 404-SF, 14242, and 14302 and is made in China.

• Thread length: 4.25 in (4-1/4"); tip surface diameter: 0.75 in (3/4").
• Black oxide coated spindle for corrosion resistance; designed for C-clamp adjustment.
• Replacement part MPN 1700150 compatible with Wilton models 400-SF, 404-SF, 404, 14242, and 14302.

Product Highlights

Replacement spindle assembly for Wilton C-clamps; 4.25 in thread, 0.75 in tip, black oxide coated.

Product Information

Standard Information

• Brand: WILTON
• Manufacturer Part Number: 1700150
• Country of Origin: China

Technical Specifications

• Brand: Wilton
• Manufacturer Part Number: 1700150
• SKU: 825-1700150
• UPC: 662755507540
• Compatible Models: 404SE C-C; 400-SF; 404-SF; 404; 404-SFSG; 404-STG; 4404; 14242; 14302
• Application: C-Clamps
• Thread Length: 4.25 in (4-1/4")
• Thread Size: 3/4 in
• Tip Surface Diameter: 0.75 in (3/4")
• Spindle Diameter: 3/4 in
• Spindle Material/Coating: Black oxide coated
• Overall Length: 4.5 in
• Weight: 0.82 lb
• Country of Origin: China
• For Use With: Wilton 400-SF and 404-SF series C-clamps
