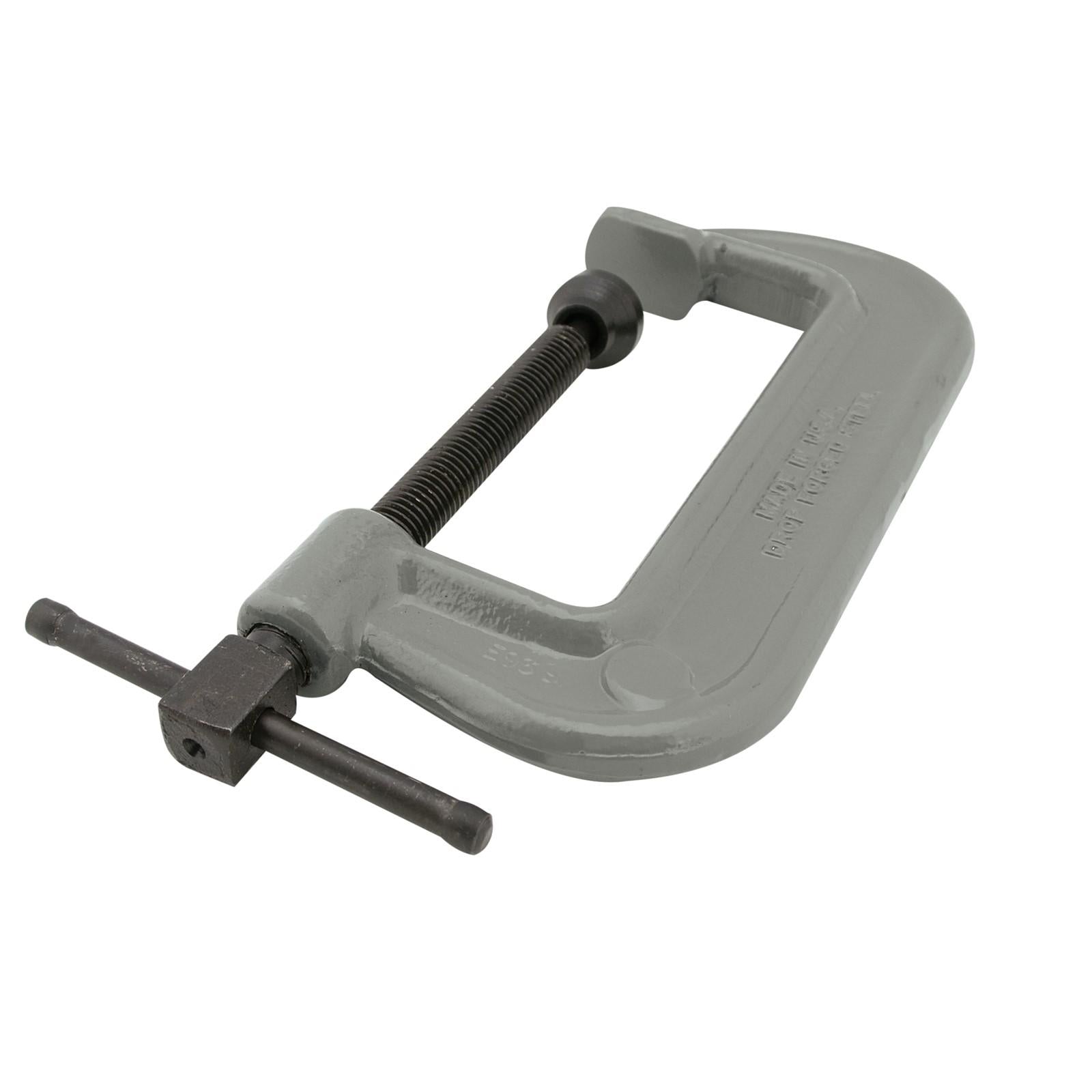

Wilton 14184 Forged C-clamp 6-10 in Jaw Heavy Duty

Product Description

The WILTON 14184 is a heavy-duty forged C-clamp from the 110 and 100 Series, built for demanding clamping applications in trade and industrial settings. It offers a jaw opening range of 6 inches to 10 inches, accommodating a wide variety of workpiece thicknesses. The throat depth measures 2-3/4 inches, providing clearance for standard fabrication and assembly tasks. Weighing 9 pounds, this clamp is constructed from forged steel for the strength and durability required in professional environments. It is suited for use by ironworkers, pipefitters, welders, millwrights, and general contractors who need reliable holding force on heavy structural work.

The WILTON 14184 is designed for heavy-duty clamping in fabrication shops, structural steel assembly, pipe fitting, and general construction applications. The 6-inch to 10-inch jaw range makes it appropriate for clamping thick stock, structural members, or multiple layered workpieces. The forged construction delivers superior strength compared to cast alternatives, making it a dependable choice for production environments and field work where clamp failure is not an option.

Key Features

• Jaw opening range of 6 inches to 10 inches for versatile workpiece sizing
• Throat depth of 2-3/4 inches for adequate clearance on standard assemblies
• Forged steel construction for high-strength, heavy-duty performance
• Part of the 110 and 100 Series C-clamp line for consistent quality
• Weighs 9 pounds, reflecting robust material cross-section

Compatibility

Designed as a heavy-duty forged C-clamp suitable for structural fabrication, pipe fitting, and industrial assembly applications requiring a 6-inch to 10-inch jaw capacity.

Installation Notes

C-clamps of this size and weight class are typically handled by ironworkers, pipefitters, welders, and millwrights. Inspect the screw, swivel pad, and frame for cracks or deformation before each use. Never strike the clamp handle with a hammer to increase clamping force, as this can exceed the rated capacity and damage the frame or screw mechanism. Follow applicable OSHA and workplace safety guidelines when using clamps in overhead or structural applications.

Technical Specifications

• Jaw Opening: 6 to 10 inches
• Throat Depth: 2-3/4 inches
• Weight: 9 pounds
• Construction: Forged Steel
• Series: 110 and 100 Series
• UOM: Each

Standard Information

• Brand: WILTON
• Manufacturer Part Number: 14184
