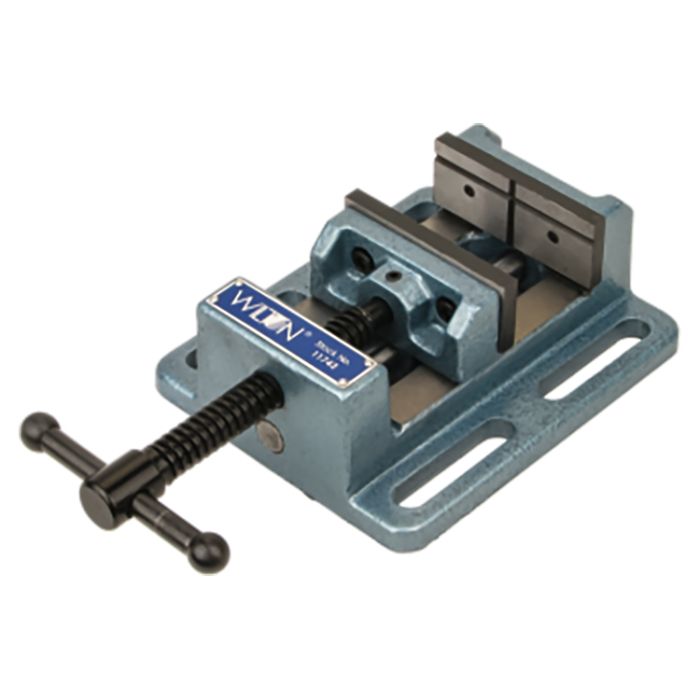

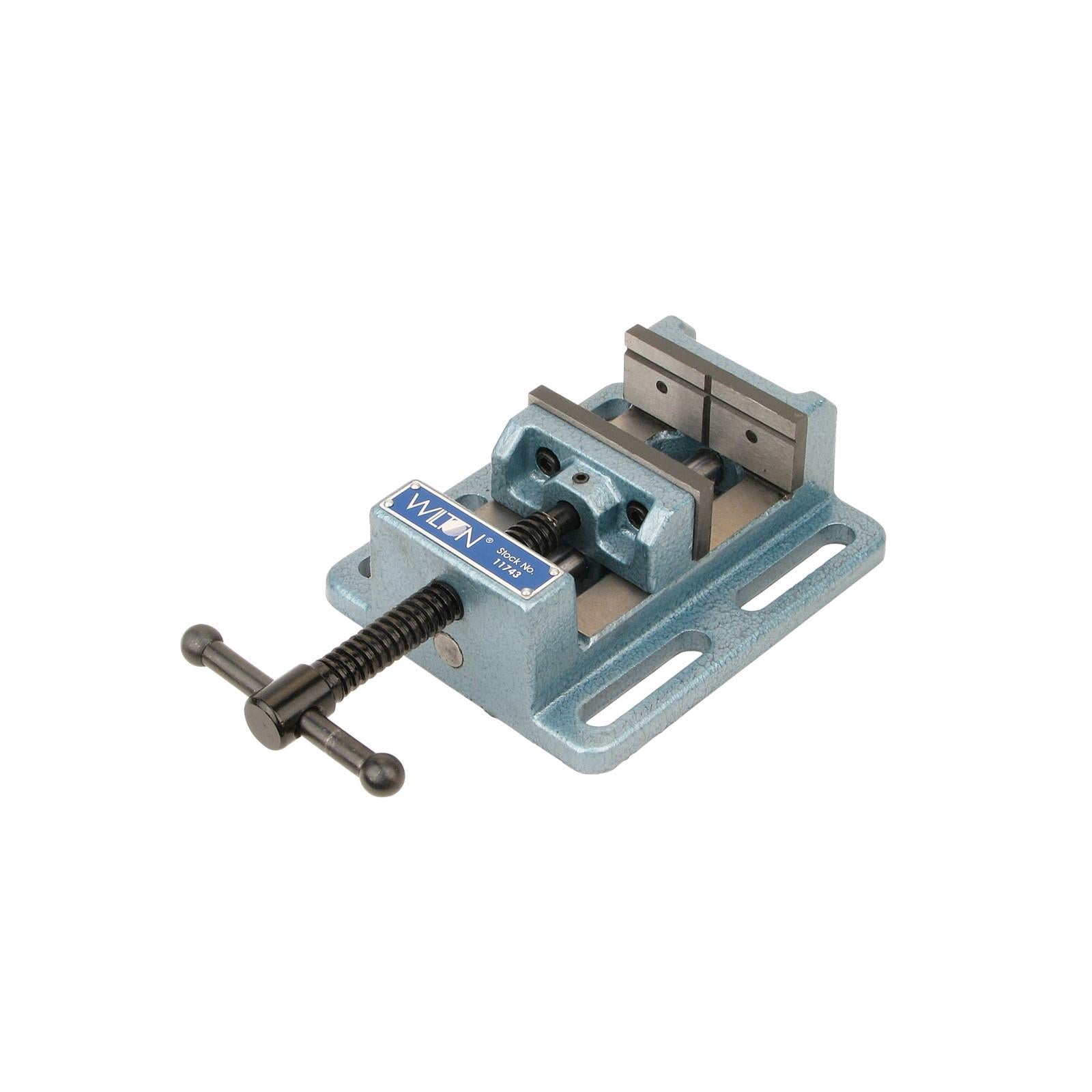

Wilton 11748 8 inches Low Profile Drill Press Vise

Product Description

The Wilton 11748 is an 8" low profile drill press vise designed for smaller quill travel applications. It features hardened V-grooved jaws to hold round objects vertically and horizontally. The vise has a durable construction with fine grain cast iron castings and hardened steel vise jaws. It is designed for drilling, tapping, and reaming applications.

• Designed for applications including drilling, tapping and reaming
• Low profile clearance for increased working room on machine table
• Hardened V Grooved Jaws hold round shaped objects both vertically and horizontally

Product Highlights

This Wilton drill press vise has a black oxide coated ACME threaded screw that provides consistent clamping pressure. The base has four 1/2" shoulder slots for quick, easy positioning on the machine table.

Product Information

Standard Information

• Brand: WILTON
• Manufacturer Part Number: 11748
• Country of Origin: CN

Technical Specifications

• MPN: 11748
• Brand: Wilton
• Type: Low Profile
• Description: Drill Press Vise
• Base Type: Stationary
• Size: 8 in
• Jaw Width: 8 in
• Throat Depth: 2 in
• Manufacturers Part Number: 11748
• Height: 3.563 in
• Length: 11 in
• Width: 17 in
• Jaw Opening [Nom]: 8 in
• Height [Nom]: 3.562 in
• Length [Nom]: 11 in
• Width [Nom]: 17 in
• Jaw Opening (In.): 8 in
• Overall Height (In.): 3-9/16
• Overall Length (In.): 11
• Item [Specifications]: Machine Vise
• Jaw Width (In.) [Specifications]: 8 in
• Jaw Depth (In.): 2
• Model Number: LP8
• Prop 65: Cancer and Reproductive Harm
• Opening Capacity Max (In.): 8
• Weight (Lbs.): 50
• Application: Drilling, Tapping, Reaming
• Maximum Opening Capacity: 8"
• Style: Low Profile
