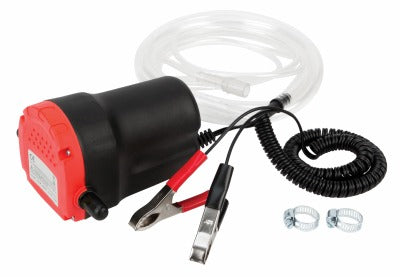

Wilmar Corporation W54170 12V Oil Extraction Pump

Product Description

The WILMAR CORPORATION W54170 is a 12-volt portable oil extraction pump designed for fast, clean fluid removal in automotive, marine, and recreational vehicle service. Powered by a self-priming 12V 5A DC motor running at approximately 1400 RPM, it moves up to 3 quarts of oil per minute without requiring the operator to drain from below. The compact, lightweight housing makes it easy to carry between vehicles or store in a service van. The kit ships with the pump unit, hose clamps, and detailed instructions, along with two pre-cut hoses ready for immediate use.

This pump is suited for technicians and experienced DIYers who perform routine oil changes on cars, motorcycles, RVs, and boats where bottom-drain access is limited or inconvenient. The inlet hose measures 47 inches long at 0.16 inches in diameter, and the outlet hose measures 59 inches long at 0.47 inches in diameter, providing enough reach for most standard engine bays and bilge compartments. It is an efficient alternative to gravity draining in tight-access applications across light automotive and marine service work.

Key Features

• Self-priming 12V 5A DC motor — no manual siphon start required
• Extraction rate up to 3 quarts per minute
• Motor speed approximately 1400 RPM for consistent flow
• Inlet hose: 47 inches long, 0.16 inches diameter
• Outlet hose: 59 inches long, 0.47 inches diameter
• Includes pump, hose clamps, and detailed instructions

Compatibility

Designed for use with cars, motorcycles, RVs, and boats requiring 12-volt DC-powered fluid extraction during oil service operations.

Installation Notes

Connect the pump to a 12-volt DC power source such as a vehicle battery before use. Shut off the engine and allow oil to cool to a safe handling temperature before beginning extraction. Ensure all hose clamps are secured and hose connections are tight before operating to prevent fluid leaks. Dispose of extracted oil in accordance with local environmental regulations.
