Williams M119046 Ac Power Supply Kit Wall Furnace

Product Description

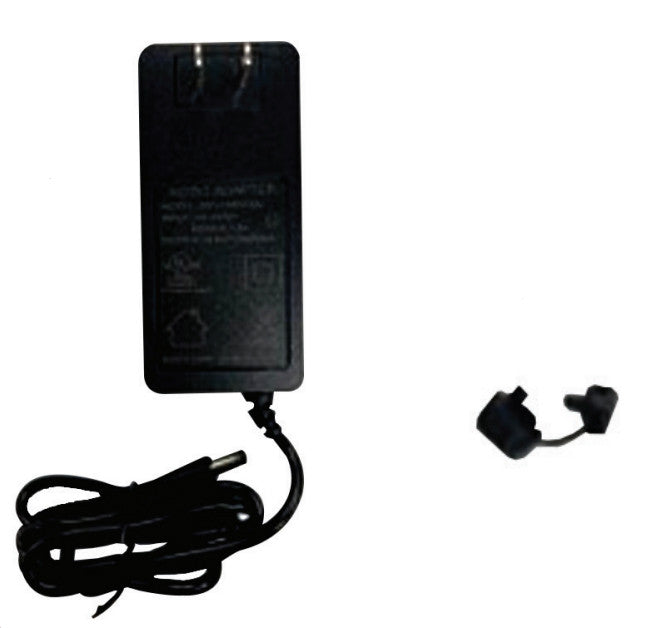

The WILLIAMS COMFORT PRODUCTS M119046 is an AC power supply kit designed to connect a Carmel Top Vent Wall Furnace to a standard electrical outlet. The kit includes a 4-foot power cord that plugs directly into a household outlet, providing the power source required for furnace operation. When the included cord length is insufficient for the installation layout, the furnace can alternatively be hardwired through the wall to the home electrical supply using the External Power Supply Kit M119015. This kit is installed by a qualified HVAC technician or electrician as part of a wall furnace service or new installation.

The M119046 is intended specifically for use with the Carmel Top Vent Wall Furnace line. It is suited for residential applications where a plug-in power connection is preferred over a hardwired solution. In situations where the 4-foot cord does not reach the nearest outlet due to furnace placement or wall configuration, the hardwire option via the External Power Supply Kit M119015 provides a code-compliant alternative for the installation.

Key Features

• Includes a 4-foot AC power cord for plug-in connection to a standard outlet
• Designed as a direct power supply solution for Carmel Top Vent Wall Furnaces
• Compatible installation method: plug-in or hardwire via External Power Supply Kit M119015
• Simplifies power connection during new installation or service replacement

Compatibility

Designed for use with the Carmel Top Vent Wall Furnace. When a plug-in connection is not feasible, pair with External Power Supply Kit M119015 for a hardwired installation.

Installation Notes

Installation should be performed by a licensed HVAC technician or electrician in accordance with local electrical codes and the NEC. Disconnect power to the furnace before beginning any wiring work. If hardwiring through the wall, use the External Power Supply Kit M119015 and ensure all connections are made inside an approved enclosure per applicable code requirements. Do not extend or splice the included power cord.

Technical Specifications

• Cord Length: 4 feet
• Connection Type: Plug-in (outlet) or hardwire via M119015

Standard Information

• Brand: WILLIAMS COMFORT PRODUCTS
• Manufacturer Part Number: M119046
