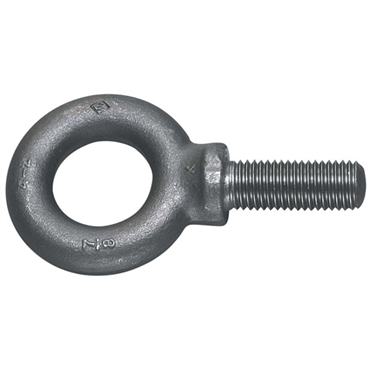

Williams JHWEB-21T Eye Bolts 500 lbs Capacity

Product Description

The WILLIAMS JHWEB-21T eye bolt is designed for lifting applications. Forged from carbon steel, it's hardened and tempered for increased strength and toughness. It features UNC Class 2A threads and should be properly seated against the mating part, with tightness and seating checked after initial load. It has a rated load of 500 lbs.

• Forged from quality carbon steel, hardened and tempered
• Available with UNC Class 2A thread
• Each lot is tested and inspected

Product Highlights

The WILLIAMS JHWEB-21T eye bolt is suitable for various lifting applications, offering durability and conformance to specifications.

Product Information

Standard Information

• Brand: WILLIAMS
• Manufacturer Part Number: JHWEB-21T
• Country of Origin: U.S.A.

Technical Specifications

• Threads per Inch: 20
• Ultimate Strength: 2500 lbs
• Head Cross Section Thickness: 9/32 in
• Product Type: Shoulder Eyebolt
• Brand: Williams
• Overall Length: 2 7/16 in
• Shank Configuration: Ring
• Thread Size: 1/4 in
• Manufacturer: WILLIAMS INDUSTRIAL
• Manufacturer Part Number: JHWEB-21T
• Thread Length: 1"
• Thread Type: UNC-2A
• Eye Size: 3/4"
• Rated Load: 500 lbs
• Country of Origin: U.S.A.
• Type: Shoulder Pattern
• Shank Diameter(Inches): 1/4
• Length of Shank(Inches): 1
• Inner Diameter(Inches): 3/4
• Shoulder Width(Inches): 9/16
