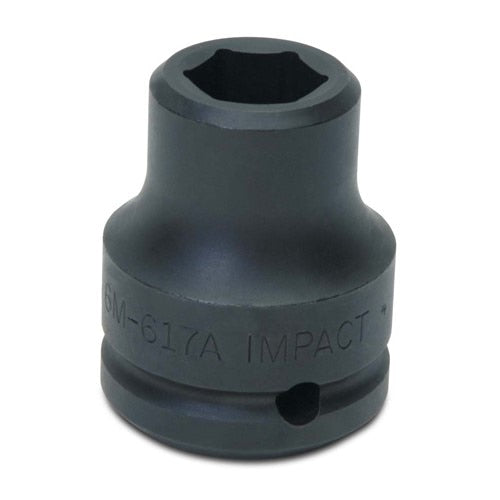

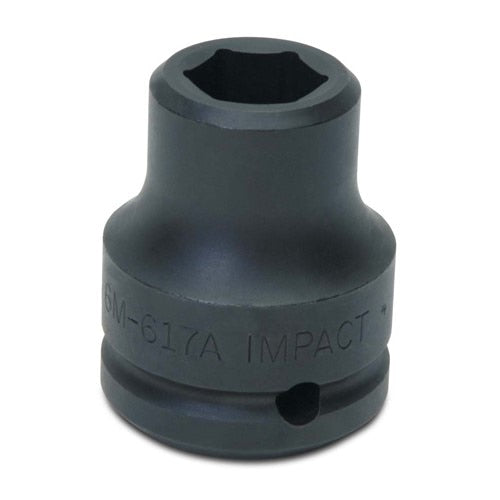

Williams JHW6M-619A Shallow Impact Socket 3/4 Dr 19MM Metric

Product Description

The WILLIAMS COMFORT PRODUCTS JHW6M-619A is a shallow impact socket designed for heavy-duty fastening applications in mechanical and industrial trade work. This 3/4 inch drive socket is sized at 19 MM metric and features an overall length of 2 inches, keeping the profile compact for use in tighter spaces. The lobular SUPERTORQUE internal geometry increases turning force on the fastener while reducing the risk of rounding or deforming fastener heads. Specially heat treated for impact use, this socket is built to handle the stress cycles produced by pneumatic and electric impact wrenches.

The JHW6M-619A is suited for automotive, heavy equipment, and general mechanical applications where a 19 MM metric shallow socket is needed. The shallow profile is ideal when fastener accessibility allows and a deeper socket would create clearance issues. The drive end includes a pin retention hole and groove, which is standard for impact-grade 3/4 inch drive tooling and helps secure the socket to the impact wrench anvil during high-torque operation. This socket is sold individually.

Key Features

• SUPERTORQUE lobular openings increase turning power without deforming fastener heads
• Designed for maximum engagement on 6-point fasteners
• Compatible with pneumatic and electric impact wrenches
• Specially heat treated for impact use to deliver long service life and durability
• Drive end features pin retention hole and groove for secure anvil attachment
• Compact shallow profile at 2 inches overall length

Compatibility

Designed as an OEM-style replacement or supplemental impact socket for 3/4 inch drive pneumatic and electric impact wrenches requiring a 19 MM metric shallow socket.

Installation Notes

Installation and use should be performed by qualified mechanics or tradespeople familiar with impact tooling. Always power down or disconnect the impact wrench before attaching or removing the socket. Verify the pin and retaining ring are properly seated before applying torque. Do not use impact sockets with standard ratchet handles, as impact-rated and hand-tool-rated drive tools have different stress tolerances.

Technical Specifications

• Drive Size: 3/4 inch
• Socket Size: 19 MM
• Socket Type: Shallow Impact
• Point Style: 6 Point
• Measurement Standard: Metric
• Overall Length: 2 inches
• Weight: 0.64 pounds
• Sold As: Each
• UPC: 662459904607

Standard Information

• Brand: WILLIAMS COMFORT PRODUCTS
• Manufacturer Part Number: JHW6M-619A
