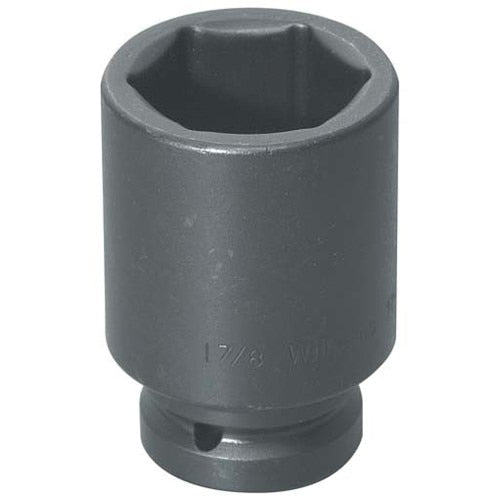

Williams JHW17-690 Deep Impact Socket 1 in Drive Sae

Product Description

The WILLIAMS COMFORT PRODUCTS JHW17-690 is a deep impact socket designed for heavy-duty fastener removal and installation in demanding trade and industrial applications. Built with a 1 inch drive and an overall length of approximately 5.125 inches, this SAE socket features SUPERTORQUE lobular openings that apply torque to the flat sides of a fastener rather than its corners. This design delivers greater turning power while reducing the risk of rounding or deforming the fastener head. The socket is specially heat treated for impact use, providing long service life and reliable performance under the stress of pneumatic and electric impact wrenches. Mechanical contractors, millwrights, and heavy equipment technicians will find this tool well suited to high-torque fastening tasks.

This deep impact socket is intended for use in commercial and industrial maintenance environments where large-format fasteners require substantial torque. Its 1 inch drive size makes it compatible with heavy-duty impact wrenches commonly found in fleet maintenance shops, industrial plants, and structural steel work. The deep socket profile accommodates extended or recessed fasteners that standard-depth sockets cannot reach. It is sold individually and is sized for SAE fastener specifications.

Key Features

• SUPERTORQUE lobular opening design applies force to fastener flats, reducing fastener deformation
• Maximum engagement geometry optimized for 6-point fasteners
• Compatible with pneumatic and electric impact wrenches
• Specially heat treated for impact-rated durability and long service life
• Deep socket profile for recessed or extended fastener applications
• 1 inch drive for use with heavy-duty impact tooling

Compatibility

Designed as an OEM-style replacement and standard deep impact socket for 1 inch drive pneumatic and electric impact wrenches used in heavy-duty SAE fastener applications.

Installation Notes

Installation and removal should be performed by qualified mechanics or tradespeople familiar with high-torque impact tooling. Always verify the socket is fully seated on the drive anvil and fastener before applying power. Inspect the socket for cracks or wear before each use, and do not use impact sockets with standard hand-drive ratchets. Ensure the work area is stable and the workpiece is properly secured before operating an impact wrench.

Technical Specifications

• Drive Size: 1 inch
• Overall Length: 5.125 inches
• Opening Size: 2.8125 inches
• Socket Type: Deep Impact
• Drive Standard: SAE
• Point Count: 6-point
• Weight: 9.93 pounds
• Sold As: Each

Standard Information

• Brand: WILLIAMS COMFORT PRODUCTS
• Manufacturer Part Number: JHW17-690
