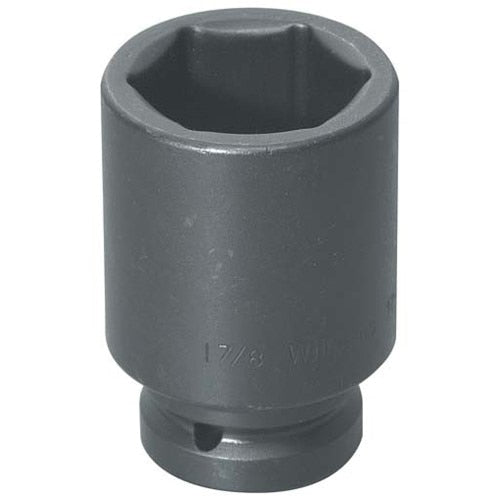

Williams JHW17-654 Deep Impact Socket 1 in Drive Sae

Product Description

The WILLIAMS COMFORT PRODUCTS JHW17-654 is a deep impact socket designed for heavy-duty fastener removal and installation in demanding trade environments. Built with a 1-inch drive and a 1 11/16-inch opening in SAE sizing, this socket features SUPERTORQUE lobular openings engineered to maximize turning power while reducing the risk of fastener deformation. The overall length of approximately 4.25 inches allows access to recessed or extended fasteners. Specially heat treated for impact service, it is rated for use with pneumatic and electric impact wrenches and is sold individually.

This socket is suited for industrial, mechanical, and heavy equipment service applications where high-torque fastening is required. The deep profile accommodates extended or recessed bolt heads common in heavy machinery, fleet maintenance, and structural assembly work. It is appropriate for use in professional shop environments and field service situations where a 1-inch drive impact tool is the standard.

Key Features

• SUPERTORQUE lobular openings provide greater turning power without deforming fastener flats
• Designed for maximum engagement on 6-point fasteners to reduce slippage
• Compatible with pneumatic and electric impact wrenches
• Specially heat treated for impact use, promoting long service life and durability
• Deep profile accommodates extended and recessed fastener heads
• SAE sizing in a 1 11/16-inch opening with a 1-inch drive

Compatibility

Designed as an OEM-style replacement or direct-fit deep impact socket for use with 1-inch drive pneumatic and electric impact wrenches in SAE applications.

Installation Notes

Installation and use should be performed by qualified mechanics or trade professionals familiar with high-torque impact tooling. Inspect the socket for cracks or wear before each use and never use a damaged socket under impact loads. Ensure the drive retainer or pin-and-ring retention system is properly engaged before applying torque. Do not use impact sockets with standard ratchets or hand-drive tools, as impact-grade loads exceed the design parameters of non-impact drive tools.

Technical Specifications

• Drive Size: 1 inch
• Opening Size: 1 11/16 inches
• Overall Length: 4.25 inches
• Socket Type: Deep Impact
• Point Count: 6-point
• Measurement Standard: SAE
• Length (Packaged): 3.6 inches
• Width (Packaged): 2.4 inches
• Weight: 2.98 pounds
• Unit of Measure: Each
• Minimum Order Quantity: 1

Standard Information

• Brand: WILLIAMS COMFORT PRODUCTS
• Manufacturer Part Number: JHW17-654
