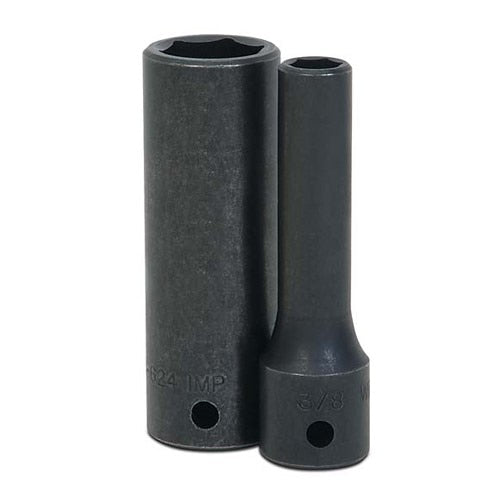

Williams JHW14-642 Deep Impact Socket 1-5/16 in Sae 1/2 Dr

Product Description

The WILLIAMS COMFORT PRODUCTS JHW14-642 is a deep impact socket designed for heavy-duty fastener removal and installation in demanding trade and industrial environments. Built with a 1/2 inch drive and a 1 5/16 inch SAE opening, it reaches an overall length of 3.5 inches to access recessed fasteners that standard sockets cannot reach. The socket features lobular internal geometry engineered to maximize torque transfer while reducing deformation of fastener heads. It is specially heat treated for impact use, making it compatible with both pneumatic and electric impact wrenches used by mechanics, millwrights, and service technicians.

This socket is suited for automotive, industrial maintenance, HVAC equipment assembly, and heavy equipment service applications where high-torque impact tools are standard. The 1/2 inch drive size fits a wide range of professional impact wrenches and torque tools. The deep profile is particularly useful when working with long bolts, threaded rod, or fasteners behind panels and flanges where a standard-depth socket would bottom out before achieving full engagement.

Key Features

• Lobular opening geometry maximizes turning power without deforming 6-point fasteners
• Deep profile at 3.5 inches OAL for accessing recessed or extended fasteners
• 1/2 inch drive compatible with standard pneumatic and electric impact wrenches
• 1 5/16 inch SAE sizing for common heavy-duty bolt and nut applications
• Specially heat treated for impact use to deliver long service life and safety

Compatibility

Designed as an OEM-style replacement and standard fitment deep impact socket for 1/2 inch drive pneumatic and electric impact wrenches accepting SAE sockets.

Installation Notes

Installation and removal should be performed by a qualified mechanic or service technician familiar with impact tooling. Ensure the socket is fully seated on the drive anvil and the fastener before applying torque. Do not use impact sockets with standard hand-drive ratchets beyond their rated torque capacity. Inspect the socket for cracks or deformation before each use and replace if damage is found.

Technical Specifications

• Drive Size: 1/2 inch
• Opening Size: 1 5/16 inches SAE
• Overall Length: 3.5 inches
• Socket Type: Deep Impact
• Point Style: 6 Point Lobular
• Width: 1.8 inches
• Weight: 1.3 pounds
• Unit of Measure: Each

Standard Information

• Brand: WILLIAMS COMFORT PRODUCTS
• Manufacturer Part Number: JHW14-642
