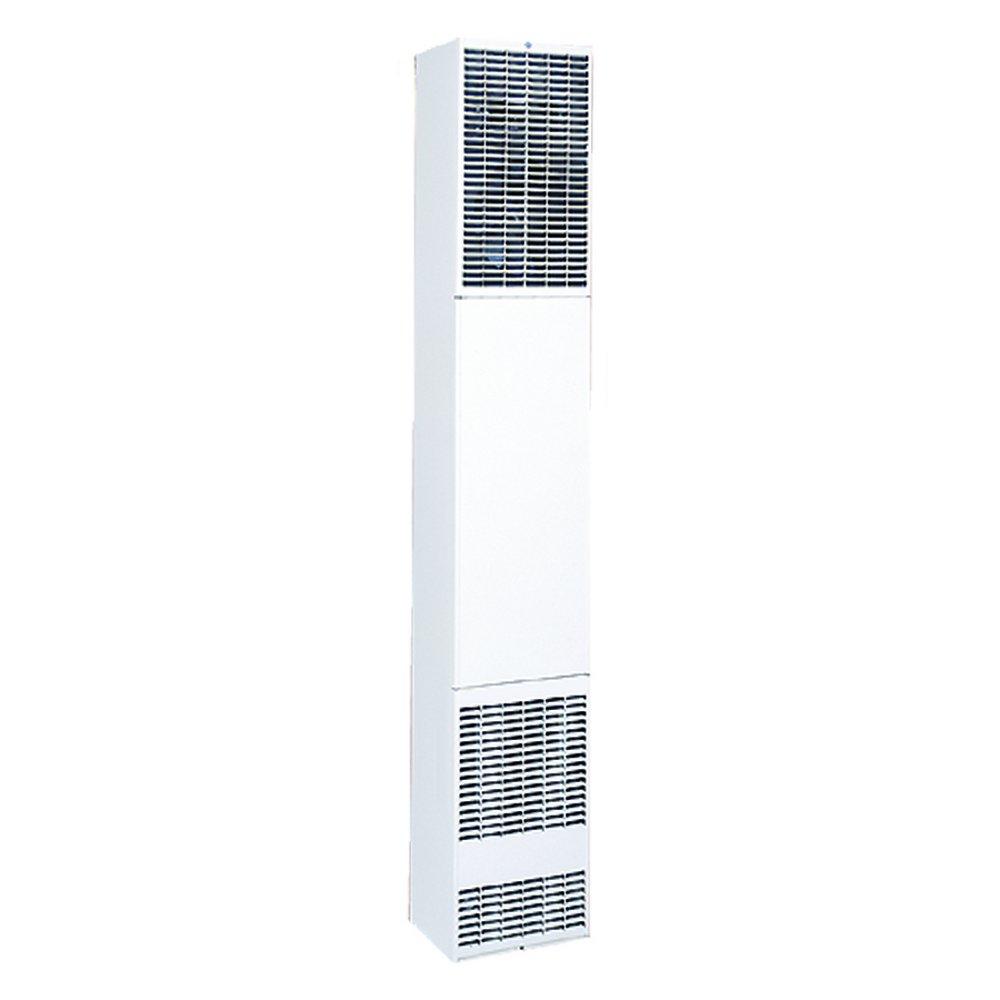

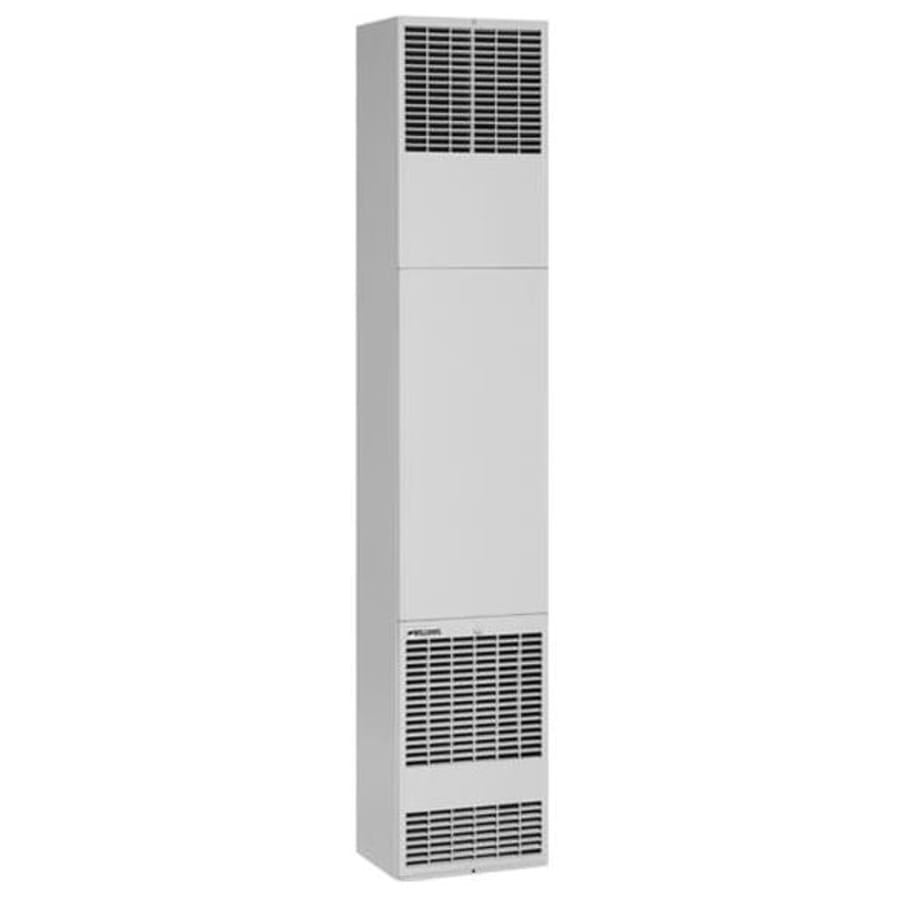

Williams Furnace 5507332 Forsaire 55000 BTU Direct Vent Furnace

Product Description

The WILLIAMS FURNACE 5507332 Forsaire direct vent furnace is designed for indoor heating, operating at 55,000 BTU. It distributes heat efficiently throughout any indoor space. Ideal for homes, apartments, offices, and schools, this unit requires less than one square foot of floor space. It uses outside air for combustion and features intermittent ignition.

• Forced-air circulation comfort heating system uses only outside air for combustion
• Intermittent Ignition
• All vent material is included

Product Highlights

This counterflow blower system circulates warm air from ceiling to floor. Burners are sealed within the combustion chamber. Venting materials are included.

Product Information

Standard Information

• Brand: WILLIAMS FURNACE
• Manufacturer Part Number: 5507332
• Country of Origin: USA

Technical Specifications

• AFUE Rating: 76.5%
• Input BTU Rating: 55000 Btu/hr
• Installation Type: Recessed / Surface Wall Mount
• Fuel Type: Choice NG / LP
• Heating BTUs: 55000
• Heating BTUs (Output): 42500
• AFUE Efficiency: 76.5%
• Type of Venting: Direct Vent
• Vent Connection Size (in.): Oval to 4" Round
• Blower: Included
• Ignition Type: Electronic Ignition
• Control Type: Wall Thermostat Required (NOT INCLUDED)
• Gas Connection Size: 1/2"
• Manifold Pressure (in.): 4.0" w.c. (NG) / 10.0" w.c. (LP)
• Inlet Gas Pressure (Min.): 5.0" w.c. (NG) / 11.0" w.c. (LP)
• Inlet Gas Pressure (Max.): 7.0" w.c. (NG) / 13.0" w.c. (LP)
• Top to Ceiling (in.): 4
• Bottom to Floor (in.): 0
• To Side Wall (in.): 4
• Width (in.): 14.125
• Depth (in.): 11.75
• Height (in.): 87
• Net Weight (lbs.): 140
• Product Category: Wall Mounted Heater
• Vent Type: Rear (Direct Vent)
• Voltage: 115V
• Amperage: 3A
• Certifications: CSA
• Vent Free: No
• NG Conversion: Yes
• Vent Location: Rear
• Stages: Single Stage
• Outdoor Approved: No
• AMP: 3
• BTU: 55000
• BTU Heat Rating: 55000 Btu/h
• CEC Compliant: For Sale in CA
• CSA Certified: Yes
• Collection: Forsaire
• Condensing: No
• Configuration: Direct Vent
• Energy Star Compliant: No
• Fan Speeds: 2
• Gas Valve Stages: Single-Stage
• Ignition System: Intermittent Pilot
• MBH: 55
• Phase: Single Phase
• Power Source: Gas
• Tonnage: 4.5 Ton
• UL Listed: No
• Volts: 115V
• Brand: WILLIAMS COMFORT PRODUCTS
• Model: 5507332
• Features: Vent Type Direct Counter Flow, Fuel Type Natural Gas, Heating Method Fan Forced Convection, Heating Capacity Input 55, 000 BtuH, Heating Capacity Output 42, 500 BtuH, Heating Area 1, 500 sq ft, Ignition Type Electronic, Ignition Power Source Electric, Air Flow 440 cfm, Overall Height 87 in, Overall Width 14 1/8 in, Overall Depth 11 3/4 in, Mounting Location Wall, Mounting Type Semi-Recessed, Thermostat Included No, Venting Vented, Wall Type Single, For Use Indoors/Outdoors Indoor Only
• Country of Origin: US
• California Prop 65 Warning: N
