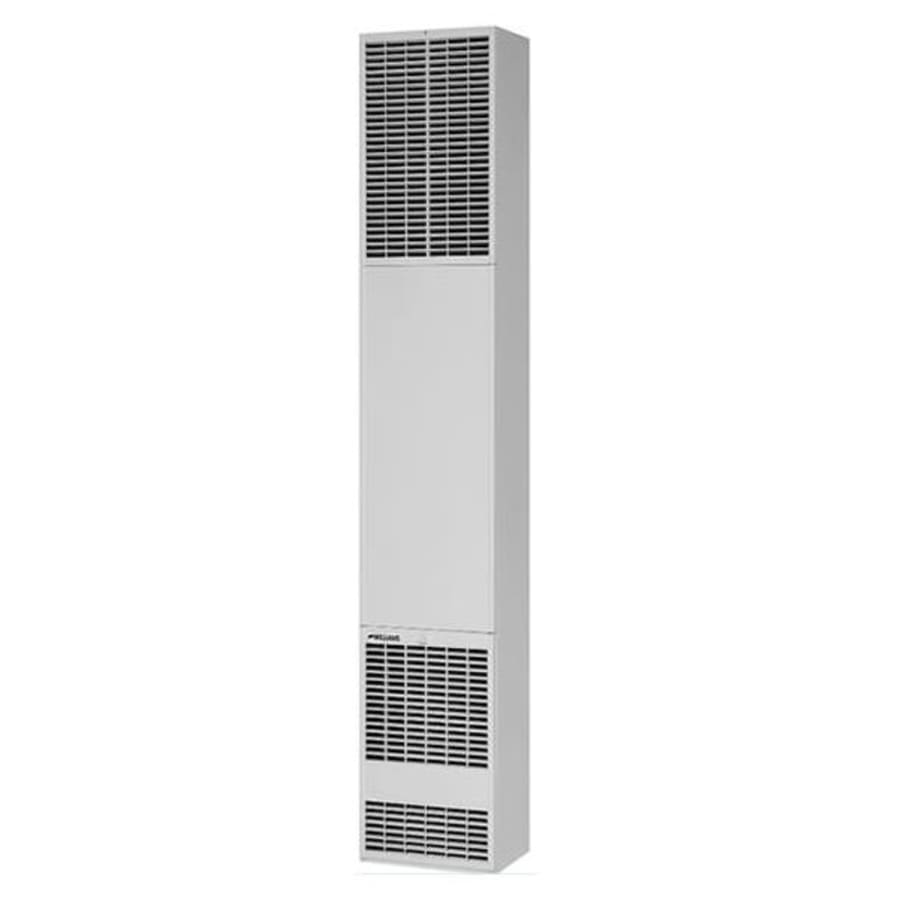

Williams Furnace 5008632 Forsaire 50,000 BTU Top Vent Furnace

Product Description

The WILLIAMS FURNACE 5008632 Forsaire counterflow furnace is equipped with a blower system that receives air at ceiling level and warms it. It may be installed freestanding against a wall or recessed in a 16" stud wall space. The heater is vented through the roof to the outside. Equipped with a four-foot service cord.

• Counterflow furnace
• Blower system
• May be installed freestanding or recessed

Product Highlights

Ideal for homes, apartments, offices, and schools, this unit is conveniently compact for ample heat wherever you need it.

Product Information

Standard Information

• Brand: WILLIAMS FURNACE
• Manufacturer Part Number: 5008632
• Country of Origin: USA

Technical Specifications

• Frequency: 60 Hz
• Thermostat: included
• venting: vented through the roof to the outside (venting material not included)
• pilot: Standing pilot
• AFUE Rating: 76%
• Motor Type: Blower
• Fuel Type: Natural Gas
• Vent Type: Top (Chimney Vent)
• Installation Type: Recessed / Surface Wall Mount
• Control Type: Knob
• Installation Location: Indoor
• BTU Output: 50,000
• High Fire Input: 50,000 BTU
• High Fire Output: 40,000 BTU
• Voltage: 115V
• Amperage: 2.2A
• Gas Connection: 1/2"
• Height: 81"
• Width: 14-1/8"
• Depth: 10-1/4"
• Certifications: CSA
• Stages: Single Stage
• Heating BTUs: 50000
• Heating BTUs (Output): 40000
• Type of Venting: B-Vent
• Vent Connection Size (in.): Oval to 4" Round
• Blower: Included
• Ignition Type: Standing Pilot
• Gas Connection Size: 1/2"
• Manifold Pressure (in.): 4.0" w.c.
• Inlet Gas Pressure (Min.): 5.0" w.c.
• Inlet Gas Pressure (Max.): 7.0" w.c.
• Top to Ceiling (in.): 4
• Bottom to Floor (in.): 0
• To Side Wall (in.): 4
• CFM: 350
• Gas: NATURAL
• Input (BTUH): 50000
• Pilot Type: STANDING
