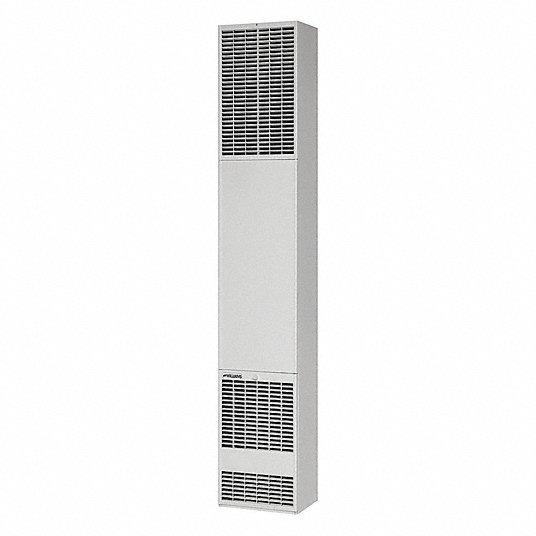

Williams Furnace 3508632 Forsaire 35,000 BTU Top Vent Furnace

Product Description

The WILLIAMS FURNACE 3508632 counterflow furnace is equipped with a blower system that receives air at ceiling level, warms it, and quietly delivers it at floor level to give an equalized floor-to-ceiling temperature. It may be installed freestanding against a wall or recessed in a 16" stud wall space. The heater is vented through the roof to the outside.

• Counterflow furnace
• Blower system
• May be installed freestanding or recessed

Product Highlights

This top vent furnace is ideal for providing efficient and even heat distribution in homes, apartments, offices, and schools.

Product Information

Standard Information

• Brand: WILLIAMS FURNACE
• Manufacturer Part Number: 3508632
• Country of Origin: USA

Technical Specifications

• Frequency: 60 Hz
• Thermostat: included
• Pilot Type: Standing pilot
• Vent Type: Top
• Voltage Rating: 240 V
• AFUE Rating: 75%
• Input BTU Rating: 35000 Btu/hr
• Motor Type: Blower
• Model: 3508632
• BTU per hour: 35,000
• Heats: up to 3 average sized rooms
• Blower: included
• Installation Type: Recessed / Surface Wall Mount
• Fuel Type: Natural Gas (NG)
• Heating BTUs: 35000
• Heating BTUs (Output): 28000
• AFUE Efficiency: 75%
• Type of Venting: B-Vent
• Vent Connection Size (in.): Oval to 4" Round
• Ignition Type: Standing Pilot
• Gas Connection Size: 1/2"
• Manifold Pressure (in.): 4.0" w.c.
• Inlet Gas Pressure (Min.): 5.0" w.c.
• Inlet Gas Pressure (Max.): 7.0" w.c.
• Top to Ceiling (in.): 4
• Bottom to Floor (in.): 0
• To Side Wall (in.): 4
• Width (in.): 14.125
• Depth (in.): 10.25
• Height (in.): 72.5
• Net Weight (lbs.): 95
• Heating Method: Fan Forced, Convection
• Heating Capacity Input: 35,000 BtuH
• Heating Capacity Output: 28,000 BtuH
• Ignition Power Source: Electric
• Wall Type: Single
• Air Flow: 240 cfm
• Overall Height: 72-1/2 in
• Overall Width: 14-1/8 in
• Overall Depth: 10-1/4 in
• Heater Voltage: 120 V AC
• Heating Area: 875 sq ft
• Housing Finish: Powder Coated
• Housing Material: Steel
• Mounting Location: Wall
• Thermostat Included: No
• Venting: Vented
• Standards: CSA
• UNSPSC: 40101805
