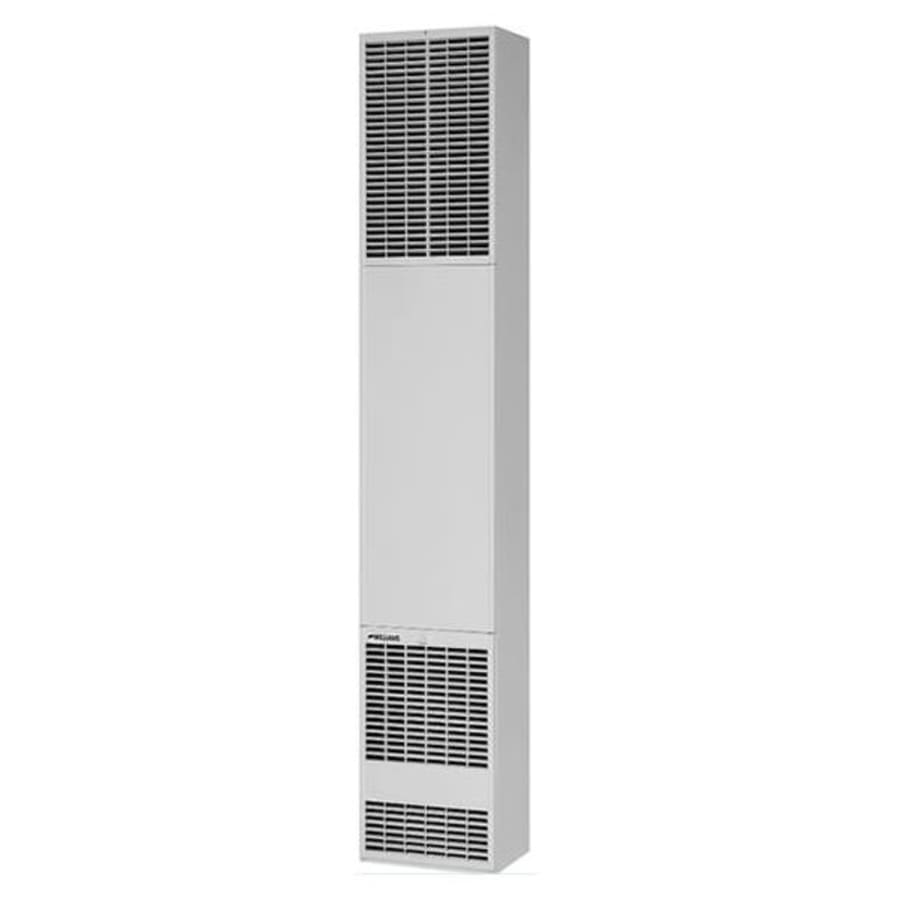

Williams Furnace 3508232 Forsaire 35,000 BTU Top Vent Furnace

Product Description

The WILLIAMS FURNACE 3508232 Forsaire counterflow furnace is equipped with a blower system that receives air at ceiling level, warms it, and quietly delivers it at floor level for an equalized floor-to-ceiling temperature. It may be installed freestanding against a wall or recessed in a 16" stud wall space. The heater is vented through the roof to the outside.

• Counterflow furnace with blower system
• Can be installed freestanding or recessed
• Equipped with a four-foot service cord

Product Highlights

This natural gas, top-vent furnace distributes heat evenly and can be installed in various indoor locations. Features intermittent ignition and includes a thermostat.

Product Information

Standard Information

• Brand: WILLIAMS FURNACE
• Manufacturer Part Number: 3508232
• Country of Origin: USA

Technical Specifications

• Frequency: 60 Hz
• Thermostat: included
• Ignition: Intermittent Ignition
• Product Category: Wall Mounted Heater
• Fuel Type: Natural Gas (NG)
• Vent Type: Chimney Vent
• Installation Type: Recessed / Surface Wall Mount
• Control Type: Wall Thermostat Required (NOT INCLUDED)
• Installation Location: Indoor
• AFUE Rating: 75%
• BTU Output: 35,000
• High Fire Input: 35,000 BTU
• High Fire Output: 28,000 BTU
• Voltage: 115V
• Amperage: 0.8A
• Gas Connection Size: 1/2"
• Certifications: CSA
• Vent Free: No
• Stages: Single Stage
• Outdoor Approved: No
• Heating BTUs: 35000
• Heating BTUs (Output): 28000
• AFUE Efficiency: 75%
• Type of Venting: B-Vent
• Blower: Included
• Ignition Type: Electronic Ignition
• Manifold Pressure (in.): 4.0" w.c.
• Inlet Gas Pressure (Min.): 5.0" w.c.
• Inlet Gas Pressure (Max.): 7.0" w.c.
• Top to Ceiling (in.): 4
• Bottom to Floor (in.): 0
• To Side Wall (in.): 4
• AFUE: 76
• AMP: 0.8
• BTU: 35000
• BTU Heat Rating: 35000 Btu/h
• CEC Compliant: For Sale in CA
• CSA Certified: Yes
• Collection: Forsaire
• Condensing: No
• Configuration: Top Vent
• Energy Star Compliant: No
• Fan Speeds: 1
• Flue Size: 4
• Gas Valve Stages: Single-Stage
• MBH: 35
• Phase: Single Phase
• Power Source: Gas
• Proposition 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
• Tonnage: 3 Ton
• UL Listed: No
• UPC: 093909576011
• Volts: 115V
• Country of Origin: United States
