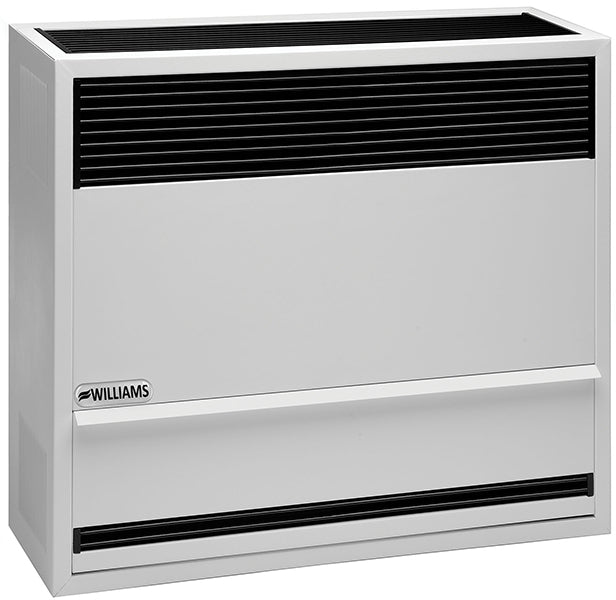

Williams Furnace 3003 30,000 BTU Gravity Direct Vent Wall Furnace

Product Description

The Williams Furnace Company 3003 is a direct-vent wall furnace, operating at 30,000 BTUs, designed for efficient indoor heating. Ideal for garages, workshops, and living spaces, this compact unit is 10 1/4 inches deep. It features a sealed combustion chamber and can operate electricity-free. Vent material is included for installation through an exterior wall.

• Matchless pilot igniter
• Sealed-combustion safety technology uses no inside room air for operation
• All vent caps include built-in "Bird-Guard"

Product Highlights

Efficiently heats indoor spaces with a sealed combustion chamber and included vent kit.

Product Information

Standard Information

• Brand: WILLIAMS FURNACE
• Manufacturer Part Number: 3003

Technical Specifications

• Installation Type: Wall Mount
• Fuel Type: Choice NG / LP
• Installation Kit: Vent Kit Included
• Heating BTUs: 30000
• Heating BTUs (Output): 21849
• Type of Venting: Direct Vent
• Air Inlet Tube (in.): 6"
• Flue Outlet Tube (in.): 4"
• Blower: Optional
• Ignition Type: Standing Pilot
• Control Type: Wall Thermostat Required (NOT INCLUDED)
• Gas Connection Size: 1/2"
• Manifold Pressure (in.): 4.0" w.c. (NG) / 10.0" w.c. (LP)
• Inlet Gas Pressure (Min.): 5.0" w.c. (NG) / 11.0" w.c. (LP)
• Inlet Gas Pressure (Max.): 7.0" w.c. (NG) / 13.0" w.c. (LP)
• Top to Ceiling (in.): 30
• Bottom to Floor (in.): 5.5
• To Side Wall (in.): 2
• Width (in.): 32.125
• Depth (in.): 10.25
• Height (in.): 28
• Certifications: CSA
