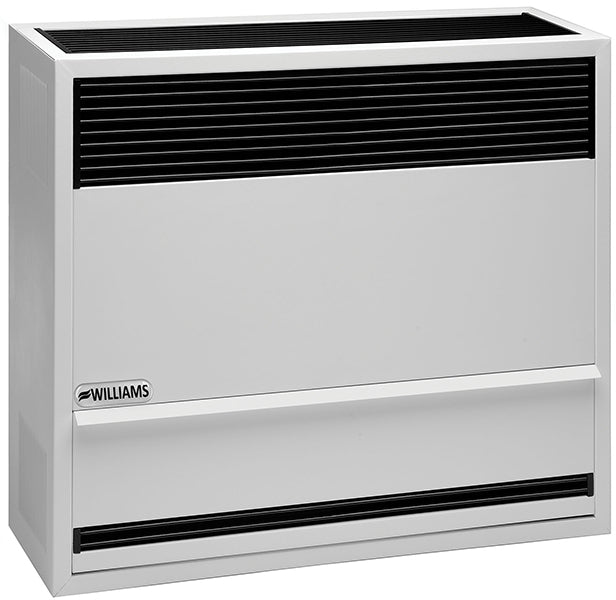

Williams Furnace 220382 22,000 BTU Gravity Direct Vent Wall Furnace

Product Description

The Williams Furnace Company 220382 is a direct-vent wall furnace operating at 22,000 BTUs, designed for efficient indoor heating. Ideal for garages, workshops, and bedrooms, its compact design ensures ample heat without sacrificing space. The sealed combustion chamber enhances safety by isolating the gas flame. It operates electricity-free, with an optional blower for even heat distribution. Vent material is included for installation.

• Made in the USA since 1916
• Matchless pilot igniter
• Sealed-combustion safety technology uses no inside room air for operation

Product Highlights

This direct-vent wall furnace provides safe and efficient heating for any indoor space, featuring a sealed combustion chamber and optional blower for enhanced comfort.

Product Information

Standard Information

• Brand: WILLIAMS FURNACE
• Manufacturer Part Number: 220382
• Country of Origin: USA

Technical Specifications

• Installation Type: Wall Mount
• Fuel Type: Choice NG / LP
• Installation Kit: Not Included
• Heating BTUs: 22000
• Heating BTUs (Output): 16462
• Type of Venting: Direct Vent
• Air Inlet Tube (in.): 6"
• Flue Outlet Tube (in.): 4"
• Blower: Optional
• Ignition Type: Standing Pilot
• Control Type: Wall Thermostat Required (NOT INCLUDED)
• Gas Connection Size: 1/2"
• Manifold Pressure (in.): 4.0" w.c. (NG) / 10.0" w.c. (LP)
• Inlet Gas Pressure (Min.): 5.0" w.c. (NG) / 11.0" w.c. (LP)
• Inlet Gas Pressure (Max.): 7.0" w.c. (NG) / 13.0" w.c. (LP)
• Top to Ceiling (in.): 30
• Bottom to Floor (in.): 5.5
• To Side Wall (in.): 2
• Width (in.): 32.0625
• Depth (in.): 10.25
• Height (in.): 28
• Net Weight (lbs.): 98
• Certifications: CSA
