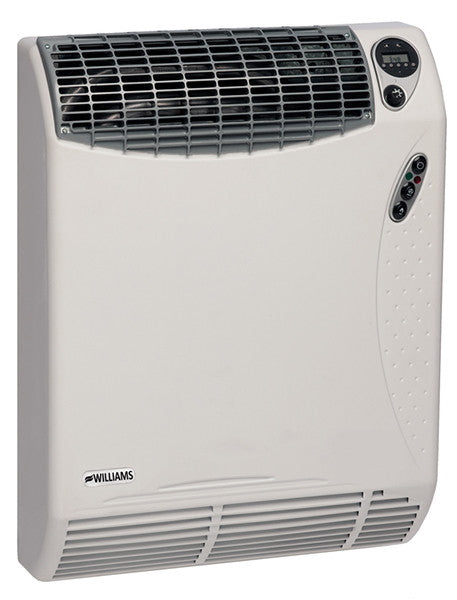

WILLIAMS FURNACE 17735 Natural Gas 17700 BTU High Efficiency Direct Vent Wall Furnace

Product Description

The Williams Furnace Company 1773512 is a high-efficiency direct-vent wall furnace designed for natural gas use. This unit provides a heat output of 17,700 BTU, making it suitable for heating garages, workshops, and bedrooms. Its compact design measures eight point two five inches deep, allowing efficient heating without occupying much space.

• Sealed combustion chamber ensures safety by isolating the gas flame.
• Programmable timer and thermostat for user-controlled heating between fifty to ninety degrees Fahrenheit.
• Includes all necessary vent materials for easy installation.

Product Highlights

This furnace operates by drawing air directly from the outside for combustion, ensuring that indoor air remains unaffected. It features a built-in two-speed recirculating fan for summer ventilation, which helps distribute cool air effectively. It is rated for installation at elevations up to five thousand five hundred feet.

Product Information

Standard Information

• Installation Type: Wall Mount
• Fuel Type: Natural Gas

Technical Specifications

• Heating BTUs: 17700
• Heating BTUs (Output): 13500
• Type of Venting: Direct Vent
• Air Inlet Pipe Diameter: 1-7/8 inches
• Exhaust Pipe Diameter: 1-3/8 inches
• Min. / Max. Wall Thickness: 5-7/8 inches / 19-5/8 inches
• Electrical Supply: 110V
• Ignition Type: Electronic Ignition
