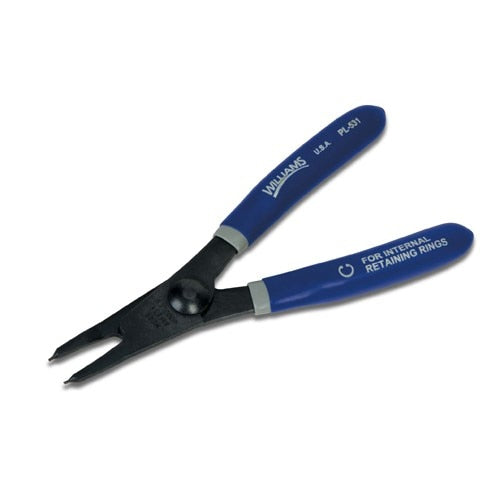

Williams Comfort Products JHWPL-531 Retaining Ring Plier

Product Description

The WILLIAMS COMFORT PRODUCTS JHWPL-531 is a fixed-tip internal retaining ring plier built for installing and removing internal retaining rings seated in a bore. The plier is manufactured from high-carbon steel that has been heat treated and induction hardened at the tips for long service life in repetitive use. A Black Oxide finish provides corrosion resistance in shop and field environments. Overall length is 5.5 inches. This tool is used by HVAC technicians, plumbers, and general trade mechanics wherever snap rings must be removed or installed without damaging the ring or the bore.

Internal retaining ring pliers are a standard tool in HVAC compressor service, pump assembly, and mechanical equipment repair. The JHWPL-531 is suited for bench work and in-field service where controlled tip engagement and consistent tip geometry are required to seat or release a ring cleanly. The fixed-tip design provides a consistent engagement angle, reducing the risk of tip slippage during installation or removal.

Key Features

• Fixed-tip internal configuration for installing and removing retaining rings in a bore
• High-carbon steel construction with heat treatment for strength and wear resistance
• Precision-formed tips with induction hardening for accurate fit and extended service life
• Black Oxide coating for corrosion resistance
• 5.5-inch overall length suitable for general-purpose snap ring work

Compatibility

Designed for use with internal retaining rings sized to the tip geometry of the JHWPL-531. Consult ring manufacturer specifications to confirm tip size compatibility before use.

Installation Notes

Retaining ring pliers should be used by qualified technicians familiar with snap ring removal and installation procedures. Always de-energize and isolate equipment before servicing components that contain retaining rings. Wear appropriate eye protection, as retaining rings can release under spring tension. Confirm the correct plier tip size matches the ring hole diameter to prevent tip breakage or ring distortion.

Technical Specifications

• Type: Internal Fixed Tip Retaining Ring Plier
• Overall Length: 5.5 inches
• Material: High-carbon heat treated steel
• Tip Style: Fixed
• Finish: Black Oxide
• Weight: 0.128 pounds
• Sold As: Each

Standard Information

• Brand: WILLIAMS COMFORT PRODUCTS
• Manufacturer Part Number: JHWPL-531
