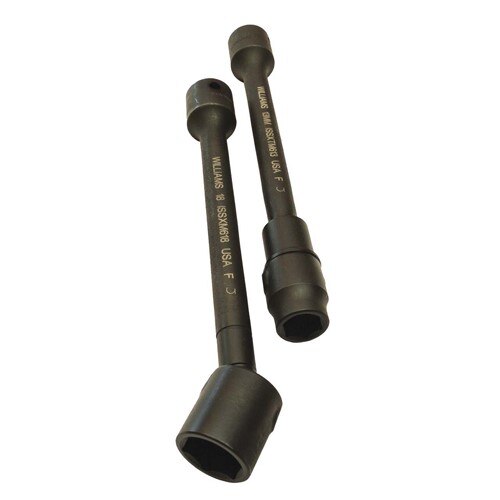

Williams Comfort Products JHWISSXT430 Flextension 1/2 in Drive

Product Description

The WILLIAMS COMFORT PRODUCTS JHWISSXT430 is a Flextension drive extension with an integrated socket, designed for engine assembly, heavy equipment manufacturing, and industrial repair work. The unit combines a 1/2 inch drive extension and a 15/16 inch socket into a single, non-removable assembly. This integrated design eliminates the risk of the socket separating from the extension during continuous operation. The socket features SUPERTORQUE lobular openings that grip fasteners firmly, reducing fastener deformation under load. Maximum working torque is rated at 160 ft-lbs, 1920 in-lbs, or 217 Nm. A Black Oxide finish provides corrosion resistance in demanding shop environments.

This Flextension is suited for professional use in engine and heavy equipment manufacturing, assembly lines, and repair facilities. The up-to-30-degree angle offset allows access to fasteners in tight or angled locations. The drive end includes a 7/32 inch cross hole bevel for easier engagement. These tools are designed for use with hand tools and power tools including impulse and direct-drive tools. They are not rated for impact tool use. Installation by qualified mechanics and industrial technicians is typical in both shop and field settings.

Key Features

• Integrated non-removable socket and extension design prevents socket separation during use
• SUPERTORQUE lobular socket openings increase turning power while reducing fastener deformation
• Maximum working torque: 160 ft-lbs / 1920 in-lbs / 217 Nm
• Up to 30 degrees of angle offset for access in restricted spaces
• Drive end features a 7/32 inch cross hole bevel for ease of engagement
• Socket retention pin is TIG welded for full rotation power transfer
• Durable Black Oxide finish for corrosion resistance
• Made in the U.S.A.

Compatibility

Designed for use with hand tools and power tools including impulse and direct-drive tools. Compatible with 1/2 inch drive tool systems requiring a 15/16 inch socket. Not compatible with impact tools.

Installation Notes

Installation and use should be performed by qualified mechanics or industrial technicians familiar with drive tool systems. Before use, verify that the drive tool is a hand or direct-drive power tool, as this Flextension is not rated for impact tool use. Ensure the drive end is fully seated in the tool before applying torque. Do not exceed the rated maximum working torque of 160 ft-lbs.

Technical Specifications

• Drive Size: 1/2 inch
• Socket Size: 15/16 inch
• Maximum Working Torque: 160 ft-lbs / 1920 in-lbs / 217 Nm
• Angle Offset: Up to 30 degrees
• Cross Hole Bevel: 7/32 inch
• Finish: Black Oxide
• Weight: 0.45 pounds
• Country of Origin: USA

Standard Information

• Brand: WILLIAMS COMFORT PRODUCTS
• Manufacturer Part Number: JHWISSXT430
