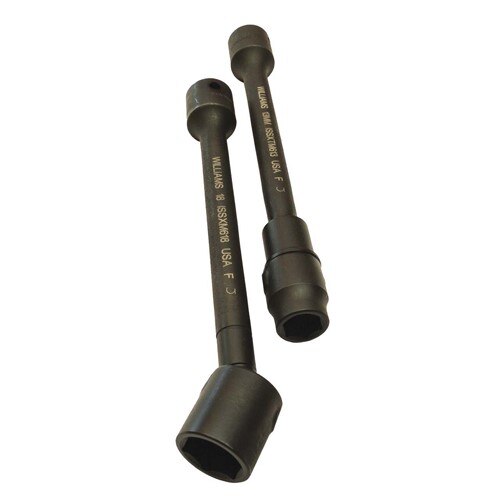

Williams Comfort Products JHWISSXT1230 Flextension 1/2 in Drive

Product Description

The WILLIAMS COMFORT PRODUCTS JHWISSXT1230 is a Flextension integrated drive extension and socket unit designed for use in engine assembly, heavy equipment manufacturing, and mechanical repair environments. This 1/2 inch drive tool features a 15/16 inch SUPERTORQUE lobular socket opening permanently joined to the extension via a TIG-welded retention pin, eliminating the risk of socket separation during continuous operation. The unit allows up to 30 degrees of angle offset, making it well suited for fasteners in tight or angled access areas. Maximum working torque is rated at 160 ft-lbs (1,920 in-lbs or 217 Nm). Installed by mechanics and assembly technicians, it is compatible with hand tools and power tools using impulse or direct drive.

This Flextension is used extensively in production assembly lines and heavy equipment repair shops where reliable, uninterrupted fastener driving is critical. The integrated socket design prevents disconnection under load, supporting high-volume and repetitive torque applications. The 15/16 inch socket size is commonly used on standard fasteners found in engine and drivetrain assemblies. It is manufactured in the U.S.A. and carries a black oxide finish for corrosion resistance. This tool is intended strictly for hand and power tool use with impulse or direct drive mechanisms. It is not rated for impact tool use.

Key Features

• Integrated non-removable socket and extension design prevents disconnection during use
• TIG-welded socket retention pin delivers full rotational power transfer to the socket
• SUPERTORQUE lobular socket opening increases turning power while reducing fastener deformation
• Up to 30 degrees of angle offset for use in restricted or angled access locations
• 7/32 inch cross hole bevel on the drive end for easier engagement
• Black oxide finish for corrosion resistance and durability
• Made in the U.S.A.

Compatibility

Designed for use with hand tools and power tools using impulse or direct drive. Not for use with impact tools. Other lengths and socket sizes are available by special order through Snap-on Industrial Brands representatives.

Installation Notes

This tool is installed by mechanics and assembly technicians in manufacturing and repair settings. Always verify the fastener size matches the 15/16 inch socket opening before applying torque. Do not exceed the maximum working torque of 160 ft-lbs to avoid tool or fastener damage. This Flextension is not rated for impact tools and must not be used with air or electric impact drivers.

Technical Specifications

• Drive Size: 1/2 inch
• Socket Size: 15/16 inch
• Maximum Working Torque: 160 ft-lbs (1,920 in-lbs / 217 Nm)
• Angle Offset: Up to 30 degrees
• Drive End Cross Hole Bevel: 7/32 inch
• Length: 13.75 inches
• Width: 1.5 inches
• Height: 1.5 inches
• Weight: 1.01 pounds
• Finish: Black Oxide
• Country of Origin: U.S.A.
• UPC: 662459375322

Standard Information

• Brand: WILLIAMS COMFORT PRODUCTS
• Manufacturer Part Number: JHWISSXT1230
