Williams Comfort Products JHWISSXM416 Flextension 1/2 in Drive 16 Mm

Product Description

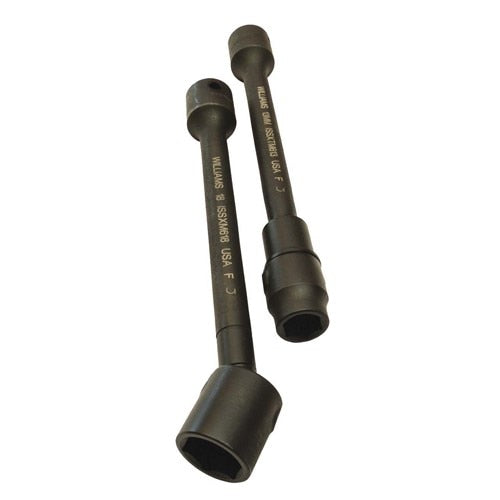

The WILLIAMS COMFORT PRODUCTS JHWISSXM416 is a 1/2 inch drive Flextension featuring an integrated 16 MM, 6-point socket permanently joined to a drive extension. The socket retention pin is TIG welded to the extension body, eliminating the socket separation that can occur with standard ball-retained hand-tool sockets. Rated for a maximum working torque of 160 ft-lbs (1,920 in-lbs / 217 Nm), this Flextension is built for demanding production and repair environments. A durable black oxide finish provides corrosion resistance. The drive end includes a 7/32 inch cross hole bevel for easier handling during operation.

Flextensions are used extensively in engine assembly, heavy equipment manufacturing, and mechanical repair applications where continuous, reliable fastener driving is required. The integrated socket-and-extension design allows technicians to work without interruption, reducing the risk of dropped sockets in confined or high-cycle work environments. The socket features SUPERTORQUE lobular openings that apply rotational force to the flat faces of a fastener rather than the corners, reducing the chance of rounding. The unit accommodates up to 30 degrees of angle offset, useful in tight or angled access situations. Designed for use with hand tools and power tools using impulse or direct drive. Not rated for impact tool use.

Key Features

• Integrated TIG-welded socket retention pin prevents socket separation during continuous use
• SUPERTORQUE lobular socket opening applies force to fastener flats, reducing deformation
• Up to 30 degrees of angle offset for angled or restricted access
• Maximum working torque: 160 ft-lbs / 1,920 in-lbs / 217 Nm
• Drive end features a 7/32 inch cross hole bevel for ease of handling
• Black oxide finish for corrosion resistance
• Made in the U.S.A.

Compatibility

Designed for use with 1/2 inch drive hand tools and power tools using impulse or direct drive mechanisms. Not intended for use with impact tools.

Installation Notes

This Flextension is intended for installation by mechanics, assemblers, and technicians working in engine or heavy equipment service. Confirm the drive connection is fully seated before applying torque. Do not exceed the rated maximum working torque of 160 ft-lbs. This tool is not approved for impact tool use and should never be paired with an impact driver or wrench.

Technical Specifications

• Drive Size: 1/2 inch
• Socket Size: 16 MM
• Point Count: 6-point
• Maximum Working Torque: 160 ft-lbs / 1,920 in-lbs / 217 Nm
• Angle Offset: Up to 30 degrees
• Drive End Cross Hole: 7/32 inch bevel
• Finish: Black oxide
• Weight: 0.4 pounds
• Country of Origin: USA

Standard Information

• Brand: WILLIAMS COMFORT PRODUCTS
• Manufacturer Part Number: JHWISSXM416
