Williams Comfort Products JHWISSX630 Flextension 1/2 in Drive

Product Description

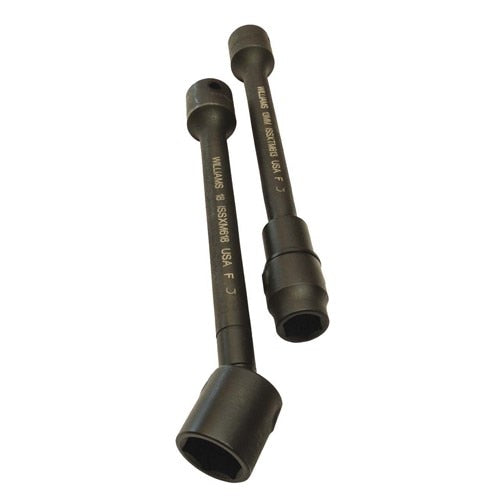

The WILLIAMS COMFORT PRODUCTS JHWISSX630 is a Flextension integrated drive extension and socket unit designed for engine assembly, heavy equipment manufacturing, and mechanical repair work. The 1/2 inch drive mates permanently to a 15/16 inch socket through a TIG-welded retention pin, eliminating the risk of socket separation during continuous production work. The socket opening uses a SUPERTORQUE lobular profile to transmit higher turning force without deforming fastener heads. Rated to a maximum working torque of 160 ft-lbs (1,920 in-lbs / 217 Nm), this unit is built for hand tools and power tools running impulse or direct drive — it is not rated for impact tool use.

The JHWISSX630 is suited to assembly line environments, fleet maintenance bays, and heavy equipment repair shops where socket loss during repetitive fastening cycles causes downtime. The up to 30 degree angle offset allows access to fasteners in recessed or angled positions without repositioning the tool. The drive end includes a 7/32 inch cross hole bevel to simplify engagement. This Flextension is sold as an individual unit and is appropriate for use wherever a 1/2 inch drive tool interfaces with 15/16 inch fasteners at volume.

Key Features

• Integrated non-removable socket and extension — socket cannot separate during use
• TIG-welded retention pin delivers full rotational torque to the socket
• SUPERTORQUE lobular socket opening reduces fastener deformation under high torque
• Up to 30 degree angle offset for access in confined or angled fastener locations
• 7/32 inch cross hole bevel on drive end for easier tool engagement
• Rated for hand tools and impulse or direct drive power tools — not for impact use
• Black oxide finish for corrosion resistance and reduced glare
• Made in the U.S.A.

Compatibility

Designed for use with 1/2 inch drive hand tools and impulse or direct drive power tools requiring a 15/16 inch socket. Not compatible with impact wrenches or impact drivers.

Installation Notes

This Flextension is installed and removed by mechanics and assembly technicians using standard 1/2 inch drive tool setups. Before use, confirm the drive tool is set to the correct torque range — do not exceed the 160 ft-lbs maximum working torque rating. This unit is not designed for impact tools; using it with an impact wrench may cause tool failure or personal injury. Ensure the fastener hex size matches the 15/16 inch socket before applying torque.

Technical Specifications

• Drive Size: 1/2 inch
• Socket Size: 15/16 inch
• Maximum Working Torque: 160 ft-lbs / 1,920 in-lbs / 217 Nm
• Angle Offset: Up to 30 degrees
• Drive End Cross Hole Bevel: 7/32 inch
• Finish: Black oxide
• Weight: 0.62 pounds
• Country of Origin: USA

Standard Information

• Brand: WILLIAMS COMFORT PRODUCTS
• Manufacturer Part Number: JHWISSX630
