Williams Comfort Products JHWISSX1230 Flextension 1/2 in Drive

Product Description

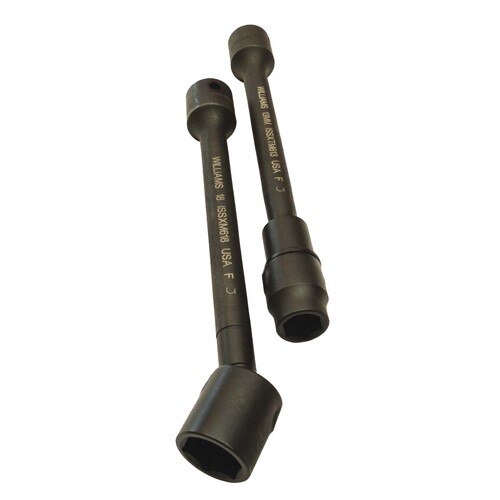

The WILLIAMS COMFORT PRODUCTS JHWISSX1230 is a Flextension integrated drive extension and socket unit designed for engine and heavy equipment manufacturing, assembly, and repair. The 1/2 inch drive extension features a 15/16 inch socket that is permanently joined to the extension via a TIG-welded retention pin, eliminating the risk of the socket separating during continuous operation. The socket opening uses a SUPERTORQUE lobular profile to apply turning force to fastener flats rather than corners, reducing fastener deformation under load. Maximum working torque is rated at 160 ft-lbs (1920 in-lbs / 217 Nm). This tool is intended for use with hand tools and power tools including impulse or direct drive equipment only.

The JHWISSX1230 is suited for production and repair environments where a socket disconnecting from a standard extension would interrupt workflow or create a safety concern. Typical applications include engine assembly lines, heavy equipment service bays, and industrial maintenance operations where continuous, high-cycle fastening is required. The integrated design supports reliable operation in tight or awkward fastener positions, with an up to 30-degree angle offset capability that extends reach in confined spaces without sacrificing torque transfer.

Key Features

• Integrated (non-removable) socket and extension design prevents socket separation during use
• TIG-welded retention pin delivers full rotational power transfer to the socket
• SUPERTORQUE lobular socket opening reduces fastener deformation under load
• Up to 30-degree angle offset for access in confined or angled fastener locations
• 7/32 inch cross hole bevel on drive end for easier tool engagement
• Durable black oxide finish for corrosion resistance in shop environments
• Made in the U.S.A.

Compatibility

Designed for use with hand tools and power tools including impulse or direct drive equipment rated for 1/2 inch drive. Not for use with impact tools.

Installation Notes

Installation and use of this Flextension should be performed by qualified mechanics or assembly technicians familiar with drive tool operation. Confirm the drive tool is powered down or disengaged before attaching or removing the extension. Do not use this tool with impact wrenches or impact drivers, as it is not rated for impact tool use. Inspect the tool before each use for signs of wear, cracking, or damage to the socket or extension body.

Technical Specifications

• Drive Size: 1/2 inch
• Socket Size: 15/16 inch
• Maximum Working Torque: 160 ft-lbs (1920 in-lbs / 217 Nm)
• Angle Offset: Up to 30 degrees
• Drive End Cross Hole Bevel: 7/32 inch
• Length: 13.625 inches
• Width: 1.25 inches
• Height: 1.25 inches
• Weight: 0.95 pounds
• Finish: Black Oxide
• Country of Origin: U.S.A.

Standard Information

• Brand: WILLIAMS COMFORT PRODUCTS
• Manufacturer Part Number: JHWISSX1230
