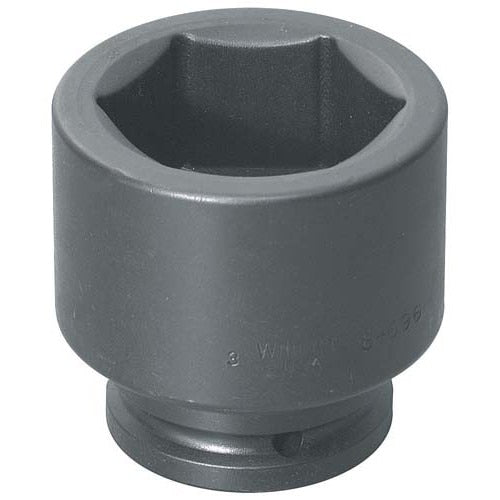

Williams Comfort Products JHW8-684 Shallow Impact Socket

Product Description

The WILLIAMS COMFORT PRODUCTS JHW8-684 is a shallow impact socket designed for heavy-duty fastening applications. Built with a 1-1/2 inch drive and a 2-5/8 inch opening in SAE sizing, this socket delivers reliable torque transfer in demanding conditions. The overall length is 4-3/32 inches, keeping the profile compact for tight-clearance work. It is constructed with a special heat treatment process that enhances durability and resistance to impact stress, making it suitable for use with pneumatic and electric impact wrenches. Mechanics, millwrights, and industrial maintenance technicians working with large-diameter fasteners are the primary users of this socket.

This socket is well suited for industrial, heavy equipment, and commercial maintenance environments where large SAE fasteners are standard. The 1-1/2 inch drive size places this in the heavy-duty category, typically found on torque multipliers, large pneumatic impact guns, and industrial-grade electric impact wrenches. It is appropriate for applications such as large machinery assembly, structural steel fastening, and heavy vehicle maintenance where high torque output is required and fastener protection matters.

Key Features

• SUPERTORQUE lobular opening geometry transfers greater turning power while reducing fastener deformation
• Designed for maximum engagement on 6-point fasteners
• Compatible with pneumatic and electric impact wrenches
• Specially heat treated for impact use, extending service life and improving safety under load
• Shallow profile at 4-3/32 inches overall length suits applications where axial space is limited

Compatibility

Designed for use with 1-1/2 inch drive pneumatic and electric impact wrenches accepting standard SAE shallow impact sockets.

Installation Notes

Installation and use should be performed by qualified mechanics or industrial maintenance technicians familiar with high-torque impact tooling. Always confirm the drive size of the impact wrench matches the 1-1/2 inch drive of this socket before use. Inspect the socket for cracks or deformation before each use and remove from service if damage is found. Never use impact sockets with hand-drive ratchets, as impact-rated sockets are engineered for dynamic loading from impact tools only.

Technical Specifications

• Drive Size: 1-1/2 inches
• Opening Size: 2-5/8 inches
• Overall Length: 4-3/32 inches
• Drive Standard: SAE
• Socket Type: Shallow Impact
• Point Count: 6-point
• Weight: 7.3 pounds

Standard Information

• Brand: WILLIAMS COMFORT PRODUCTS
• Manufacturer Part Number: JHW8-684
