Williams Comfort Products JHW8-646 Shallow Impact Socket

Product Description

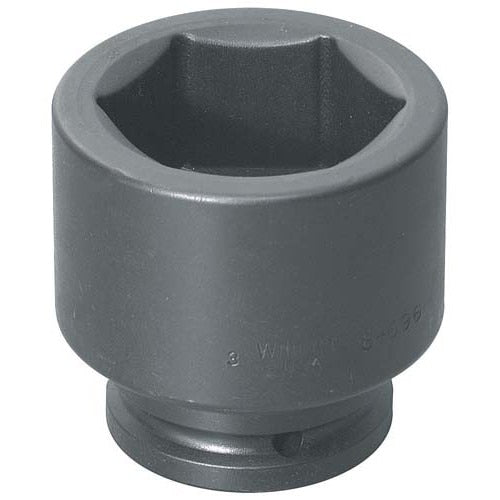

The WILLIAMS COMFORT PRODUCTS JHW8-646 is a shallow impact socket designed for heavy-duty fastener work in professional trade settings. Built with a 1 1/2 inch drive and a 1 7/16 inch opening in SAE sizing, this socket delivers reliable torque transfer in tight-clearance applications where a deep socket will not fit. The lobular internal geometry increases contact area on 6-point fasteners, reducing the likelihood of rounding. Specially heat treated for impact use, it is rated for both pneumatic and electric impact wrenches. Mechanics, millwrights, and industrial maintenance technicians working on large-fastener assemblies will find this socket suited to demanding production and field work.

This socket is intended for use in industrial, commercial, and heavy mechanical applications where large SAE fasteners are encountered. The 1 1/2 inch drive size places it in the range of heavy equipment, structural, and large-bore piping or flange work. It is well suited to shops and field crews running high-torque impact tools on equipment such as compressors, presses, agricultural machinery, and large HVAC or refrigeration units. The 3 1/32 inch overall length keeps the profile shallow for use in confined spaces.

Key Features

• SUPERTORQUE lobular opening geometry increases turning power while protecting fastener flats
• Designed for maximum engagement on 6-point fasteners
• Compatible with pneumatic and electric impact wrenches
• Specially heat treated for long service life and impact safety
• Shallow profile at 3 1/32 inches overall length for use in restricted spaces
• 1 1/2 inch drive in SAE sizing covers large industrial fastener applications

Compatibility

Designed as an OEM-style replacement or direct-use shallow impact socket for 1 1/2 inch drive pneumatic and electric impact wrenches used in industrial and heavy mechanical service.

Installation Notes

This socket should be installed by qualified mechanics or maintenance technicians familiar with high-torque impact tooling. Always confirm the drive size of the impact wrench matches the 1 1/2 inch drive before use. Inspect the socket for cracks or deformation before each use and remove from service if damage is found. Do not use with hand-ratchet tools not rated for impact loads.

Technical Specifications

• Drive Size: 1 1/2 inches
• Opening Size: 1 7/16 inches
• Overall Length: 3 1/32 inches
• Measurement Standard: SAE
• Socket Type: Shallow Impact
• Point Style: 6 Point
• Weight: 4.24 pounds
• UPC: 662459258915

Standard Information

• Brand: WILLIAMS COMFORT PRODUCTS
• Manufacturer Part Number: JHW8-646
