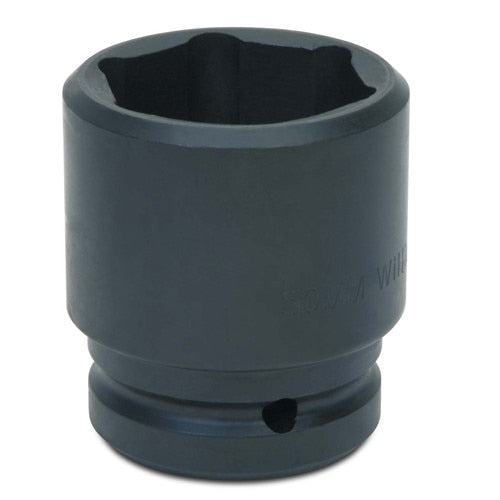

Williams Comfort Products JHW7M-646 46MM Impact Socket

Product Description

The WILLIAMS COMFORT PRODUCTS JHW7M-646 is a shallow impact socket designed for heavy-duty fastener removal and installation with pneumatic and electric impact wrenches. Built with a 1-inch drive and sized at 46MM metric, this socket features SUPERTORQUE lobular openings engineered to transfer greater turning force directly to the fastener while reducing deformation on 6-point fastener heads. The socket is specially heat treated for impact applications, improving longevity, structural integrity, and safety under repeated high-torque cycles. It is dual marked with the corresponding SAE size for quick identification in the field.

This socket is suited for professional tradespeople, mechanics, and industrial maintenance technicians working on heavy equipment, machinery, or large fastener applications. The shallow profile makes it practical in areas where a deep socket would be obstructed. The pin retention hole and groove on the drive end allow for secure attachment to impact anvils, reducing the risk of socket ejection during use. The 1-inch drive size is common in heavy-duty and industrial impact tool setups.

Key Features

• SUPERTORQUE lobular openings provide greater turning power while protecting 6-point fastener heads from deformation
• Compatible with pneumatic and electric impact wrenches
• Specially heat treated for impact use, delivering long service life and structural durability
• Drive end includes pin retention hole and groove for secure tool attachment
• Dual marked with corresponding SAE size for fast field identification
• Shallow impact profile for use in space-restricted applications

Compatibility

Designed as an OEM-style replacement or direct fitment shallow impact socket for 1-inch drive pneumatic and electric impact wrenches used in heavy-duty industrial and mechanical service applications.

Installation Notes

This socket is intended for use by qualified mechanics and industrial tradespeople operating 1-inch drive impact tools. Always verify the drive anvil and socket are fully seated and the pin retention system is engaged before applying torque. Inspect the socket for cracks or deformation before each use and remove from service if damage is found. Do not use impact sockets with standard ratchets or torque wrenches.

Technical Specifications

• Drive Size: 1 inch
• Socket Size: 46MM metric
• Overall Length: 2.9375 inches
• Profile: Shallow impact
• Point Type: 6 point
• Retention: Pin retention hole and groove
• Marking: Dual marked SAE and metric
• Weight: 2.63 pounds
• Length: 2.7 inches
• Width: 2.7 inches
• Height: 3 inches
• UPC: 662459258656

Standard Information

• Brand: WILLIAMS COMFORT PRODUCTS
• Manufacturer Part Number: JHW7M-646
