Williams Comfort Products JHW6CH12T03 Hollow Hole Cylinder

Product Description

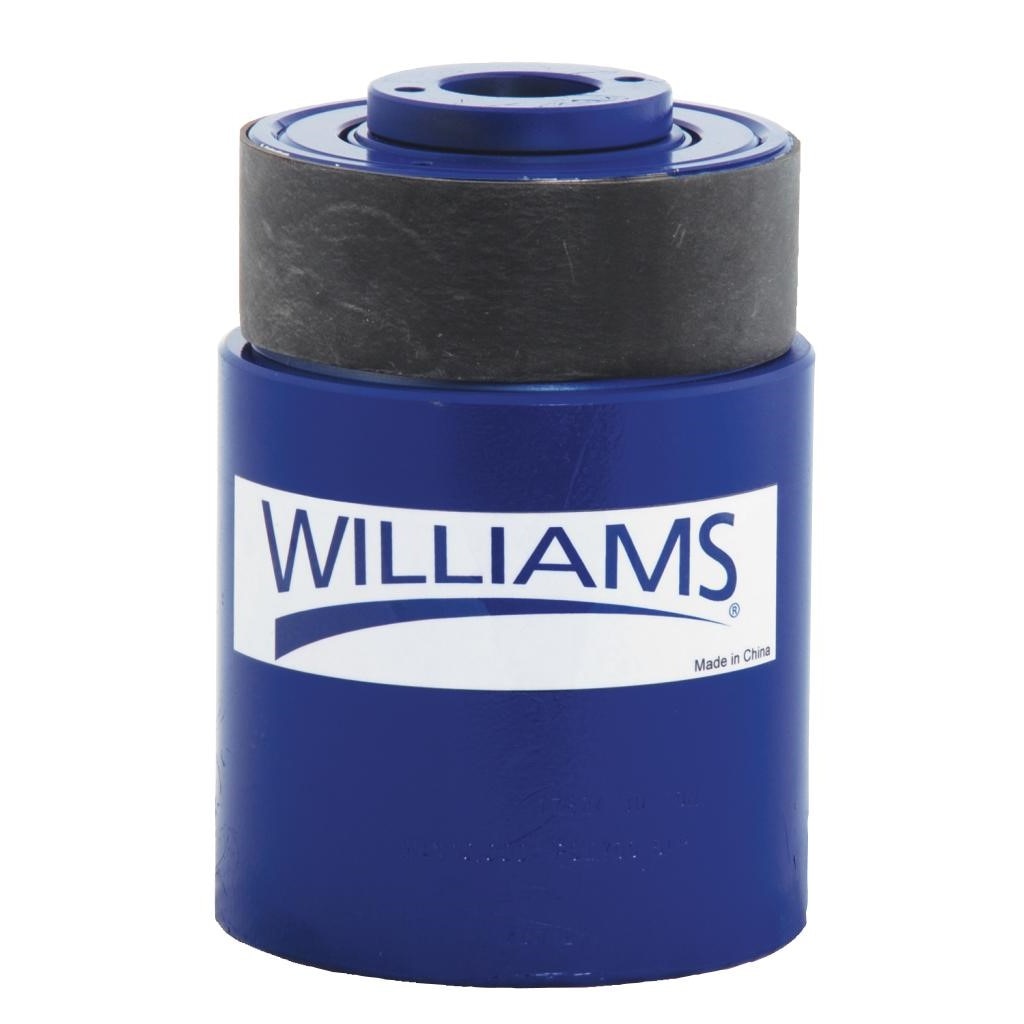

The WILLIAMS COMFORT PRODUCTS JHW6CH12T03 is a hollow hole hydraulic cylinder rated at 12 tons of lifting and pressing force with a 3-inch stroke. The hollow bore design allows a threaded rod, cable, or bolt to pass completely through the cylinder body, making it the correct tool when a technician must apply controlled force along a fixed axis without obstructing the center of the work. Weighing 9.27 pounds, this is a compact, single-acting cylinder suited for mechanical service work in trade and industrial environments.

This cylinder is used in applications where a hollow center is required to pull, press, or tension a component in place. Typical scenarios include tensioning anchor rods, pressing bearings or bushings onto a shaft, aligning flanged connections, and similar maintenance tasks. It is appropriate for use by mechanical contractors, pipefitters, millwrights, and service technicians who need precise hydraulic force in a confined or center-threaded application.

Key Features

• 12-ton rated capacity for high-force pressing and tensioning tasks
• 3-inch stroke provides controlled, measurable travel
• Hollow bore cylinder body allows rod or cable pass-through during operation
• Compact form factor at 9.27 pounds for easier handling in the field
• Single-unit packaging with a minimum order quantity of one

Compatibility

Designed as an OEM-style hollow hole hydraulic cylinder for use with compatible hydraulic hand pumps and power units that match the cylinder port fitting specifications. No specific compatible model numbers were provided in the product data.

Installation Notes

Installation and operation should be performed by qualified mechanical technicians familiar with hydraulic tooling and safe load practices. Before use, relieve all hydraulic pressure and ensure the cylinder is seated squarely against the work surface to prevent side loading. Do not exceed the rated 12-ton capacity, and inspect all hydraulic connections for leaks before applying force. Follow applicable OSHA and site-specific safety requirements when operating hydraulic cylinder equipment.

Technical Specifications

• Cylinder Capacity: 12 Ton
• Stroke Length: 3 inches
• Weight: 9.27 pounds
• Unit of Measure: Each
• UPC: 662459185150

Standard Information

• Brand: WILLIAMS COMFORT PRODUCTS
• Manufacturer Part Number: JHW6CH12T03
