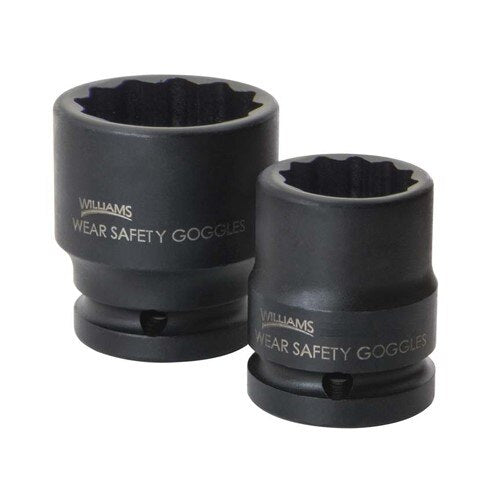

Williams Comfort Products JHW38452 Shallow Impact Socket

Product Description

The WILLIAMS COMFORT PRODUCTS JHW38452 is a shallow impact socket designed for heavy-duty fastening applications in trade and industrial environments. Built on a 3/4 inch drive, this socket measures 1 5/8 inches and features a 2 7/16 inch overall length, making it well suited for confined spaces where a standard-depth socket would not fit. The lobular internal opening geometry delivers greater turning power while protecting fastener surfaces from deformation. Specially heat treated for impact use, this socket is rated for use with pneumatic and electric impact wrenches.

This socket is intended for professional use in mechanical, industrial, and heavy equipment service applications. It is built for SAE fastener sizes and is compatible with both 6-point and 12-point fasteners, giving technicians flexibility across a range of hardware configurations. The shallow profile is particularly useful when working with fasteners in recessed or tight-clearance installations where a deep socket would bottom out before seating properly.

Key Features

• SUPERTORQUE lobular openings increase turning power without deforming fastener flats
• Designed for maximum engagement on 6 and 12 point fasteners
• Shallow depth profile suits tight-clearance and recessed fastener locations
• Compatible with pneumatic and electric impact wrenches
• Specially heat treated for impact service, providing long service life and durability
• 3/4 inch drive accepts standard 3/4 inch impact drive tooling

Compatibility

Designed as an OEM-style replacement or direct-fit addition for 3/4 inch drive impact wrench setups using SAE shallow impact sockets in industrial and mechanical service applications.

Installation Notes

Installation and use should be performed by qualified technicians familiar with impact tooling and torque procedures. Always confirm the socket is fully seated on the drive anvil and fastener before applying power. Inspect the socket for cracks or wear before each use and remove from service if damage is found. Do not use impact sockets with hand-drive ratchets, as the metallurgy is optimized for impact loading, not hand torque.

Technical Specifications

• Drive Size: 3/4 inch
• Socket Size: 1 5/8 inch
• Overall Length: 2 7/16 inches
• Standard: SAE
• Socket Type: Shallow Impact
• Length: 2.2 inches
• Width: 2.5 inches
• Height: 2.2 inches
• Weight: 1.26 pounds
• UPC: 662459340375

Standard Information

• Brand: WILLIAMS COMFORT PRODUCTS
• Manufacturer Part Number: JHW38452
