Williams Comfort Products JHW35322 Shallow Impact Socket

Product Description

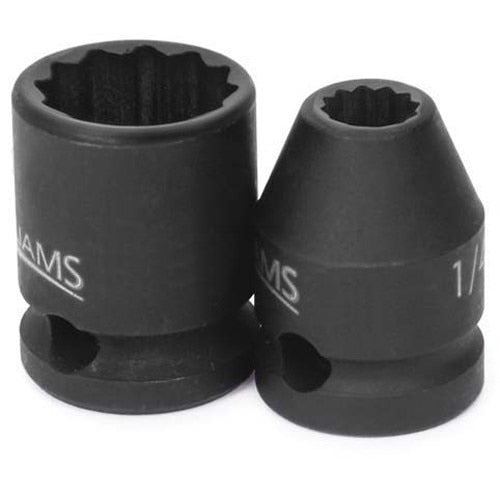

The WILLIAMS COMFORT PRODUCTS JHW35322 is a shallow impact socket designed for use with pneumatic and electric impact wrenches in professional service and maintenance applications. Built to SAE specification at 11/16 inches, it features a 3/8-inch drive and an overall length of 1 1/8 inches. The socket uses SUPERTORQUE lobular opening geometry to increase turning power while protecting fastener heads from rounding or deformation. Specially heat-treated steel construction ensures it holds up under the repeated stress of impact use. This socket is sold as an individual unit.

This socket is suited for mechanical, industrial, and facilities-maintenance applications where a compact, shallow-profile impact socket is required. The 11/16-inch SAE size handles common fastener sizes found in machinery, HVAC equipment frames, and general mechanical assemblies. Its shallow design is useful in confined spaces where a deep socket would not clear surrounding components. Professional technicians and mechanics working with impact wrenches will find the drive pin retention hole and groove useful for securing the socket during high-torque operations.

Key Features

• SUPERTORQUE lobular openings increase turning power without deforming 6-point or 12-point fasteners
• Compatible with pneumatic and electric impact wrenches
• Specially heat-treated for impact use, providing durability and long service life
• Shallow profile aids access in tight or confined installation spaces
• Drive end includes pin retention hole and groove for secure socket retention
• SAE sizing at 11/16 inches with a 3/8-inch drive

Compatibility

Designed as an OEM-style replacement or direct-fit impact socket for use with standard 3/8-inch drive pneumatic and electric impact wrenches accepting SAE shallow sockets.

Installation Notes

Installation and use should be performed by qualified mechanics or technicians familiar with impact tooling. Always ensure the socket is fully seated on the drive and the pin retention groove is engaged before applying torque. Do not use impact sockets with standard ratchets or torque wrenches, as impact-rated and hand-tool applications require different socket grades. Inspect the socket for cracks or deformation before each use and remove from service if damage is found.

Technical Specifications

• Drive Size: 3/8 inches
• Socket Size: 11/16 inches
• Overall Length: 1 1/8 inches
• Socket Type: Shallow Impact
• Drive Standard: SAE
• Weight: 0.13 pounds
• Sold As: Each

Standard Information

• Brand: WILLIAMS COMFORT PRODUCTS
• Manufacturer Part Number: JHW35322
