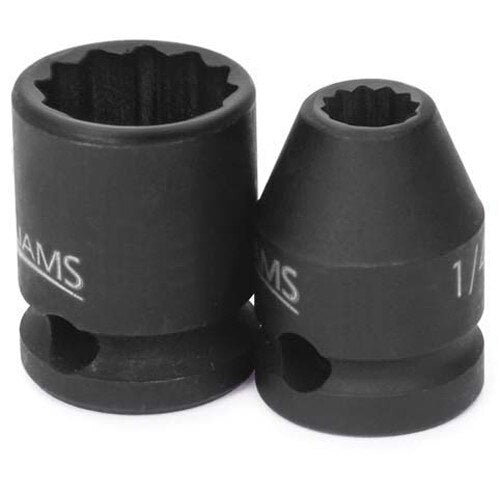

Williams Comfort Products JHW35314 Shallow Impact Socket

Product Description

The WILLIAMS COMFORT PRODUCTS JHW35314 is a shallow impact socket designed for use with pneumatic and electric impact wrenches in professional trade applications. Built to a 7/16-inch SAE fastener size with a 3/8-inch square drive, it measures 1 1/8 inches in overall length. The socket features SUPERTORQUE lobular openings that increase turning power while reducing deformation of fastener heads. Specially heat treated for impact service, this socket delivers durability and safety under repeated high-torque use. Mechanical contractors, electricians, and general trade technicians working with impact tooling will find this socket a reliable fit for fastener work in tight or standard-depth clearances.

The JHW35314 is suited for residential and commercial service applications where a shallow-profile socket is preferred over a deep socket. Its compact 1 1/8-inch overall length makes it practical in areas with limited axial clearance. The 3/8-inch drive is compatible with a wide range of impact drivers and pneumatic ratchets commonly used in HVAC, plumbing, and general mechanical work. The drive end includes a pin retention hole and groove to secure the socket on the drive during use.

Key Features

• SUPERTORQUE lobular openings increase turning power and reduce fastener deformation
• Designed for maximum engagement on 6-point and 12-point fasteners
• Compatible with pneumatic and electric impact wrenches
• Specially heat treated for impact use, providing long service life and safety
• Drive end features pin retention hole and groove for secure socket retention
• Shallow profile at 1 1/8 inches OAL for use in space-restricted applications

Compatibility

Designed as an OEM-style shallow impact socket for use with standard 3/8-inch drive pneumatic and electric impact wrenches accepting SAE 7/16-inch fasteners.

Installation Notes

Installation should be performed by a qualified technician familiar with impact tooling and fastener torque requirements. Verify the socket is fully seated on the drive and the retention pin is engaged before applying torque. Do not use impact sockets with standard hand-ratchet drives beyond their rated capacity. Always wear appropriate PPE when operating pneumatic or electric impact equipment.

Technical Specifications

• Fastener Size: 7/16 inches
• Drive Size: 3/8 inches
• Overall Length (OAL): 1 1/8 inches
• Socket Type: Shallow Impact
• Drive Standard: SAE
• Weight: 0.08 pounds
• Sold As: Each

Standard Information

• Brand: WILLIAMS COMFORT PRODUCTS
• Manufacturer Part Number: JHW35314
