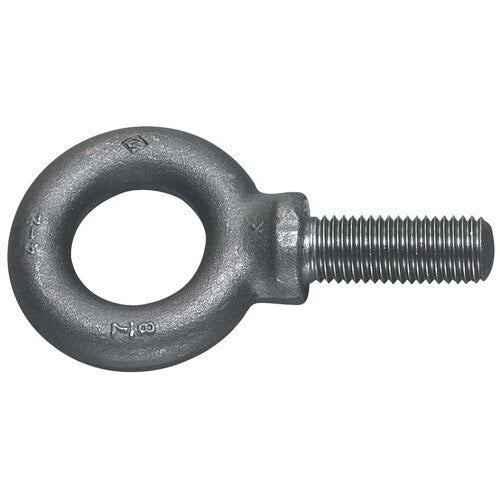

Williams Comfort Products EB-35T Shoulder Eye Bolt 1.75 in

Product Description

The WILLIAMS COMFORT PRODUCTS EB-35T is a shoulder eye bolt sized at 1.75 inches, designed for use in rigging, lifting, and anchoring applications across mechanical and construction trades. A shoulder eye bolt differs from a plain eye bolt in that it features a shoulder or flange at the base of the shank, which seats flush against the mounting surface and is required whenever a side load or angular load may be applied. This design provides greater structural reliability under off-axis loading conditions. Licensed riggers, millwrights, and mechanical contractors commonly specify shoulder eye bolts for equipment hanging, overhead lifting points, and vibration-isolation mount assemblies.

This bolt is sold as an individual unit and is suited for applications where a properly rated, shouldered lifting or anchoring point is needed. Common install scenarios include mounting mechanical equipment overhead, securing suspended HVAC units, and creating anchor points in structural steel or timber. The 1.75-inch size designation refers to the eye bolt body dimension and helps match the fastener to the correct load rating and hardware hole pattern for the application.

Key Features

• Shoulder design seats flush against mounting surface to support angular and side loads
• 1.75-inch body size for compatibility with standard rigging and anchor-point hardware
• Sold individually, allowing single-unit replacement or mixed-quantity procurement
• Compact, single-component fastener for overhead and lateral anchoring use cases

Compatibility

Designed as an OEM-style shoulder eye bolt for use in rigging, lifting, and mechanical anchoring assemblies where a shouldered fastener is specified.

Installation Notes

Installation should be performed by a qualified rigger, millwright, or licensed mechanical contractor in accordance with applicable ASME B30 rigging standards and local code requirements. Always power down and de-energize associated mechanical equipment before installing or replacing overhead anchor hardware. The shoulder must be fully seated and flush against the mounting surface before applying any load; a shoulder eye bolt must never be used without the shoulder fully engaged. Inspect threads and eye for deformation before use and verify the bolt is rated for the intended load and load angle.

Technical Specifications

• Body Size: 1.75 inches
• Weight: 10.384 pounds
• Unit of Measure: Each

Standard Information

• Brand: WILLIAMS COMFORT PRODUCTS
• Manufacturer Part Number: EB-35T
