Williams Comfort Products 8-3XS Retaining Ring Gauge

Product Description

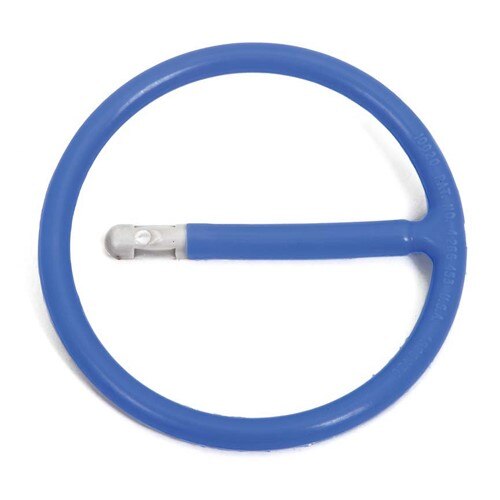

The WILLIAMS COMFORT PRODUCTS 8-3XS is a heavy crush retaining ring gauge designed for use with a 1.5-inch drive. This gauge is used to measure and verify retaining ring specifications during assembly and maintenance operations. With a gauge diameter of 3.875 inches, it provides a reliable reference for confirming proper ring seating and crush dimensions. The part is sold individually and is appropriate for use by industrial maintenance technicians, millwrights, and mechanical trades professionals working on heavy-duty assembly applications.

This retaining ring gauge is suited for industrial and mechanical maintenance environments where precise ring sizing and fitment verification are required. It is typically used during bearing, shaft, or housing assembly where retaining rings must be confirmed to correct tolerances before final installation. The 1.5-inch drive designation indicates compatibility with standard heavy-duty drive tooling used in shop and field service contexts.

Key Features

• 1.5-inch drive size for use with standard heavy-duty drive tooling
• 3.875-inch gauge diameter for accurate retaining ring measurement
• Heavy crush gauge construction for durability in shop and field use
• Sold individually, unit of measure is each

Compatibility

Designed as an OEM-style replacement and service gauge for heavy-duty retaining ring applications requiring a 1.5-inch drive and a 3.875-inch gauge diameter.

Installation Notes

This gauge is handled by millwrights, industrial mechanics, or mechanical maintenance technicians. Before use, ensure the assembly area is de-energized and any rotating equipment is fully locked out and tagged out per applicable safety procedures. Use appropriate drive tooling rated for the 1.5-inch drive specification. Do not apply impact force to the gauge beyond its intended crush measurement function.

Technical Specifications

• Drive Size: 1.5 inches
• Gauge Diameter: 3.875 inches
• Weight: 0.73 pounds
• Unit of Measure: Each
• Minimum Order Quantity: 1

Standard Information

• Brand: WILLIAMS COMFORT PRODUCTS
• Manufacturer Part Number: 8-3XS
