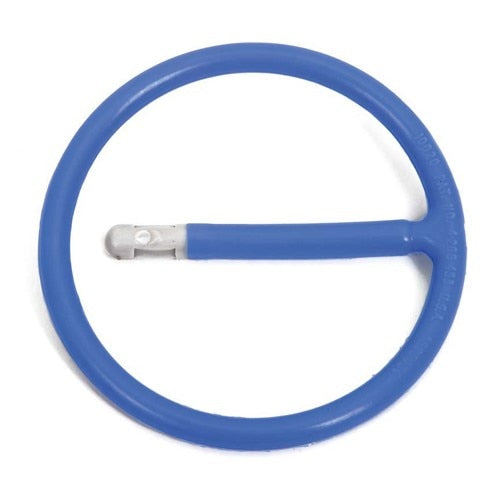

Williams Comfort Products 8-1XS Drive Retaining Ring Gauge

Product Description

The WILLIAMS COMFORT PRODUCTS 8-1XS is a 1-1/2 inch drive heavy crush retaining ring gauge with a 2-7/8 inch gauge size. This precision gauging tool is used to verify the correct installation and seating of retaining rings in drive tool assemblies. Designed for use with 1-1/2 inch square drive tooling, it gives technicians a reliable way to confirm that retaining rings are fully crushed and properly seated before putting a tool or assembly into service. The lightweight construction at 0.04 pounds makes it easy to carry and use on the job. Trades working with large-drive impact sockets and drive tool assemblies will find this gauge a practical addition to their quality-control workflow.

This retaining ring gauge is suited for industrial, mechanical, and trade service environments where 1-1/2 inch drive tools are in regular use. Typical applications include heavy equipment repair shops, industrial maintenance facilities, and professional tool service operations where verifying retaining ring crush on large-drive sockets and adapters is part of standard practice. It is sold individually and is intended for professional use by mechanics, millwrights, and tool technicians working with large-drive socket sets.

Key Features

• Designed for 1-1/2 inch square drive tool assemblies
• 2-7/8 inch gauge size for heavy crush retaining ring verification
• Lightweight at 0.04 pounds for easy field use
• Sold individually as a single unit
• Confirms proper retaining ring seating before tool service

Compatibility

Designed for use with 1-1/2 inch drive retaining ring socket and drive tool assemblies requiring heavy crush retaining ring gauging at 2-7/8 inch gauge size.

Installation Notes

This gauge is a verification tool used by mechanics and tool technicians, not an installed component. Before checking retaining ring crush, ensure the drive tool or assembly is removed from any power source or torque application. Use the gauge as directed by the tool manufacturer to confirm the retaining ring is fully seated and crushed to specification. No power tools or specialized installation codes are required for gauge use.

Technical Specifications

• Drive Size: 1-1/2 inches
• Gauge Size: 2-7/8 inches
• Type: Heavy Crush Retaining Ring Gauge
• Weight: 0.04 pounds
• Unit of Measure: Each

Standard Information

• Brand: WILLIAMS COMFORT PRODUCTS
• Manufacturer Part Number: 8-1XS
