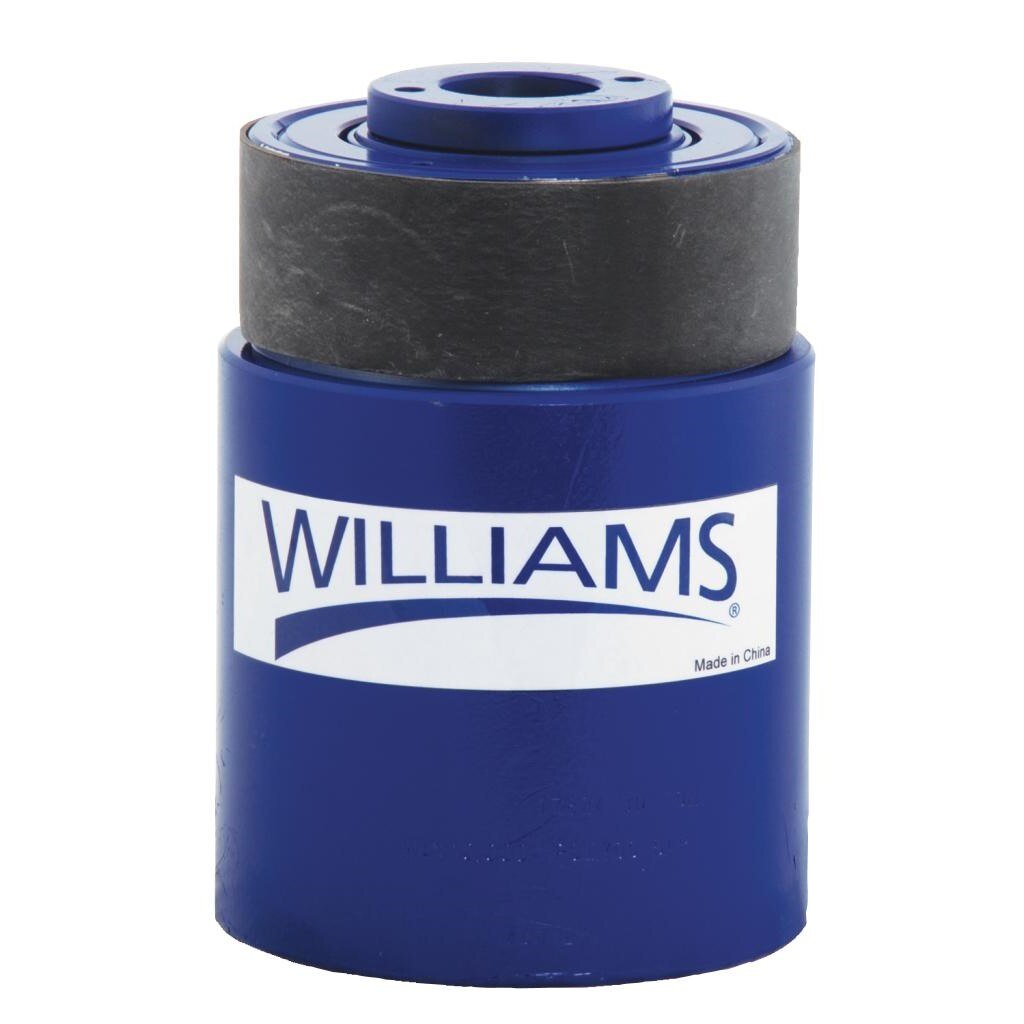

Williams Comfort Products 6CH20T02 Hollow Hole Cylinder

Product Description

The WILLIAMS COMFORT PRODUCTS 6CH20T02 is a 20-ton hollow hole cylinder designed for high-force pushing and pulling applications in industrial and trade settings. The hollow center bore allows a rod, cable, or bolt to pass through the cylinder body, making it well suited for post-tensioning, load testing, and mechanical assembly work. With a 2-inch stroke, this cylinder delivers precise, controlled linear force in a compact travel range. At 16.945 pounds, the unit is substantial in build, reflecting the duty-rated construction expected at this tonnage class. Licensed mechanics, millwrights, and heavy-equipment technicians are the primary users of this tool.

This hollow hole cylinder is applicable in construction, structural tensioning, bridge and infrastructure maintenance, and heavy fabrication environments. The 2-inch stroke makes it appropriate for applications where space is limited but high clamping or pushing force is required. It is sold as a single unit and is intended for use with a compatible hydraulic hand pump or power unit that delivers the operating pressure required to achieve rated tonnage output.

Key Features

• 20-ton rated capacity for heavy-force hydraulic applications
• Hollow center bore allows pass-through of rods, cables, or bolts
• 2-inch stroke provides controlled, short-travel linear force
• Sold as a single unit with a minimum order quantity of 1
• Robust construction consistent with 16.945-pound service weight

Compatibility

Designed for use with hydraulic pump systems capable of supplying the operating pressure required to achieve 20-ton rated output. No specific compatible model numbers were provided in the product data.

Installation Notes

Installation and operation of hydraulic cylinders at this tonnage rating should be performed by qualified mechanics or technicians familiar with hydraulic system safety practices. Always depressurize the hydraulic circuit completely before connecting or disconnecting the cylinder. Ensure all fittings, hoses, and couplers are rated for the system operating pressure before applying load. Never exceed the cylinder's rated tonnage, and keep all personnel clear of the load path during pressurization.

Technical Specifications

• Capacity: 20 ton
• Stroke: 2 inches
• Weight: 16.945 pounds
• UPC: 662459922991
• Unit of Measure: Each
• Minimum Order Quantity: 1

Standard Information

• Brand: WILLIAMS COMFORT PRODUCTS
• Manufacturer Part Number: 6CH20T02
