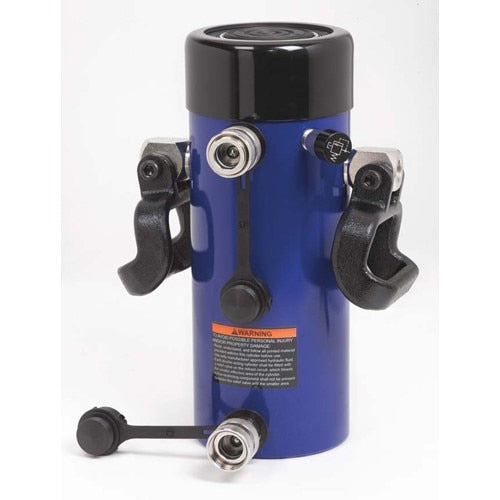

Williams Comfort Products 6CD75T13 Double-acting Cylinder

Product Description

The WILLIAMS COMFORT PRODUCTS 6CD75T13 is a double-acting cylinder with a 13-inch stroke, designed for industrial and mechanical actuation applications. Double-acting cylinders use pressurized fluid or air on both sides of the piston, enabling powered movement in both the extend and retract directions. This makes the 6CD75T13 suitable for applications that require controlled force output throughout the full range of motion. At 136.884 pounds, this is a heavy-duty unit intended for professional installation in demanding service environments. Licensed mechanical contractors and millwrights are the typical installers for this class of actuator.

The 6CD75T13 is applicable in industrial, commercial, and mechanical system installations where a double-acting linear actuator is required. The 13-inch stroke length suits it to medium-range travel applications. This cylinder is sold as a single unit and is appropriate for use where controlled bidirectional linear motion is needed within a fluid power or pneumatic circuit.

Key Features

• Double-acting design provides powered force in both extend and retract directions
• 13-inch stroke length suits medium-range linear actuation requirements
• Heavy-duty construction at 136.884 pounds supports demanding service conditions
• Sold individually as a single unit

Compatibility

Designed as an OEM-style replacement or direct-fit actuator cylinder for systems requiring a double-acting cylinder with a 13-inch stroke in the 75T series configuration.

Installation Notes

Installation should be performed by a qualified mechanical contractor or fluid power technician. Depressurize and lock out the hydraulic or pneumatic circuit completely before removing the existing cylinder or installing the new unit. Verify that all port connections, mounting hardware, and line fittings are rated for the operating pressure of the system. Follow applicable OSHA lockout/tagout procedures and local mechanical codes throughout the service procedure.

Technical Specifications

• Stroke Length: 13 inches
• Actuation Type: Double-Acting
• Weight: 136.884 pounds
• UPC: 662459946119
• Sold As: Each
• Minimum Order Quantity: 1

Standard Information

• Brand: WILLIAMS COMFORT PRODUCTS
• Manufacturer Part Number: 6CD75T13
