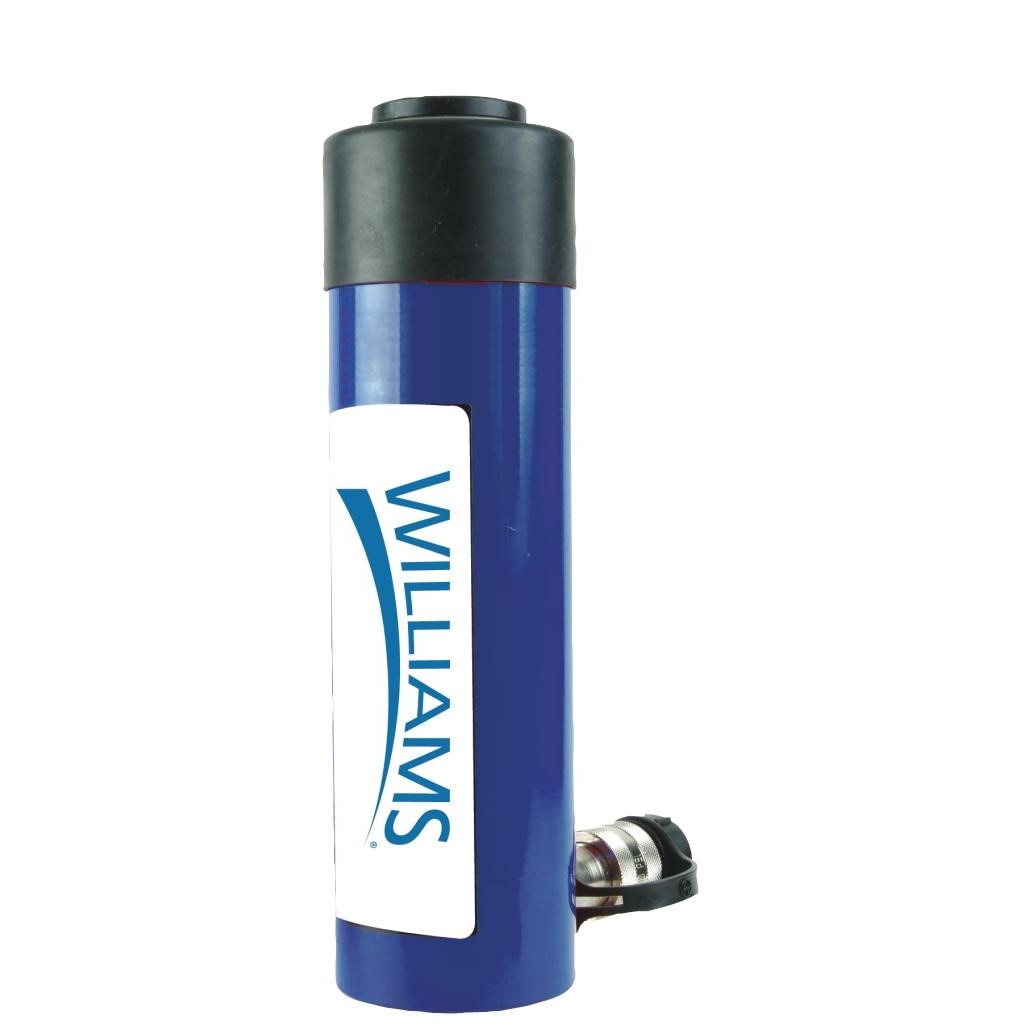

Williams Comfort Products 6C25T14 Single Acting Cylinder

Product Description

The WILLIAMS COMFORT PRODUCTS 6C25T14 is a single acting cylinder measuring 14 inches in length. Single acting cylinders use hydraulic or pneumatic pressure on one side of the piston to produce linear force in one direction, with a spring or gravity return on the opposite stroke. This cylinder is suited for actuation applications in HVAC, plumbing, or industrial control systems where controlled linear movement is required. Licensed mechanical contractors and HVAC technicians are the typical installers. At 37.734 pounds, this is a substantial unit intended for fixed-installation use rather than portable or handheld applications.

This cylinder is appropriate for commercial or industrial control applications requiring single acting linear actuation. It is sold as an individual unit. Specific system integration will depend on the actuator circuit design and the control requirements of the installation. Installers should verify stroke length, port sizing, and pressure ratings against the system design before installation.

Key Features

• Single acting design uses pressure on one side with passive return stroke
• 14-inch cylinder length suits medium-range linear actuation needs
• Substantial construction at 37.734 pounds indicates heavy-duty build
• Sold individually as a single unit

Compatibility

Designed as an OEM-style single acting cylinder replacement or new installation component for compatible actuator and control systems that accept a 14-inch single acting cylinder configuration.

Installation Notes

Installation should be performed by a licensed mechanical or HVAC technician familiar with pneumatic or hydraulic actuator systems. Depressurize the system completely before removing or installing any cylinder component. Verify that all port connections, fittings, and mounting hardware are rated for the operating pressure of the system. Follow applicable IFGC, IPC, or local mechanical codes as appropriate to the installation context.

Technical Specifications

• Cylinder Length: 14 inches
• Weight: 37.734 pounds
• Actuation Type: Single Acting
• Unit of Measure: Each
• UPC: 662459922908

Standard Information

• Brand: WILLIAMS COMFORT PRODUCTS
• Manufacturer Part Number: 6C25T14
