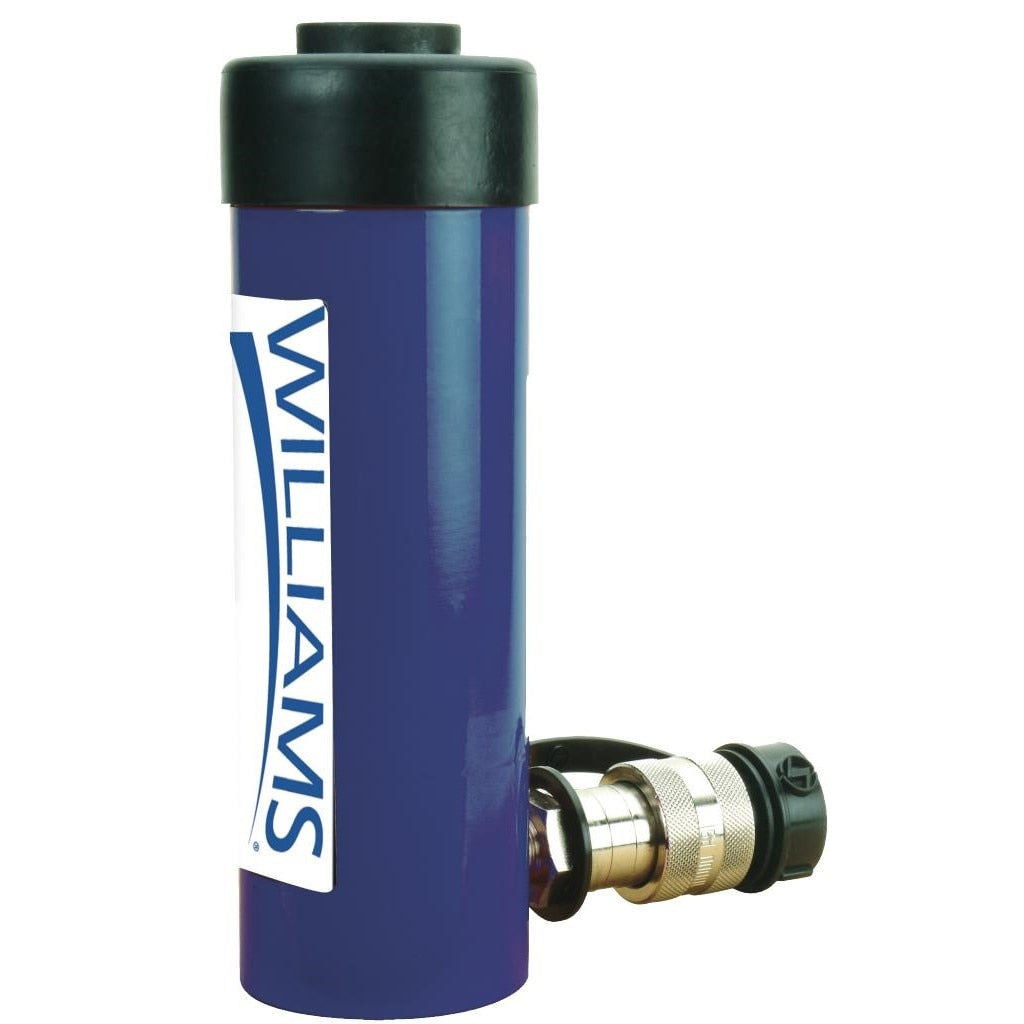

Williams Comfort Products 6C25T06 Single Acting Cylinder

Product Description

The WILLIAMS COMFORT PRODUCTS 6C25T06 is a single acting cylinder from the 25T series, designed for use in hydraulic or pneumatic actuator applications common in commercial and industrial mechanical systems. Single acting cylinders use pressure on one side of the piston to produce force in one direction, relying on a spring or external load for the return stroke. Weighing 24.141 pounds, the 6C25T06 is a robust, full-size cylinder suited for demanding service environments. Installation is typically performed by licensed mechanical or industrial service technicians familiar with fluid power systems.

The 6C25T06 is intended for single acting actuator applications where one-directional force output is required. The 6-inch designation refers to the stroke or bore dimension of the cylinder. This unit is sold individually and is appropriate for replacement or new installation in applicable mechanical systems where the 25T series cylinder is specified.

Key Features

• Single acting design produces force in one direction using line pressure with spring or load return
• 25T series construction built for durability in commercial and industrial service
• 6-inch stroke or bore dimension for use in applicable actuator assemblies
• Sold as an individual unit, no additional quantity required
• Substantial 24.141 pound build weight indicates heavy-duty construction

Compatibility

Designed as an OEM-style replacement for single acting cylinder applications specifying a 25T series 6-inch cylinder configuration.

Installation Notes

Installation should be performed by a qualified mechanical technician familiar with fluid power or pneumatic actuator systems. Depressurize and isolate the hydraulic or pneumatic circuit completely before removing or installing the cylinder. Verify all port connections, fittings, and mounting hardware are rated for the operating pressure of the system. Follow all applicable local mechanical codes and manufacturer service documentation during installation.

Technical Specifications

• Series: 25T
• Cylinder Action: Single Acting
• Stroke or Bore Size: 6 inches
• Weight: 24.141 pounds
• Unit of Measure: Each
• Minimum Order Quantity: 1
• UPC: 662459922861

Standard Information

• Brand: WILLIAMS COMFORT PRODUCTS
• Manufacturer Part Number: 6C25T06
