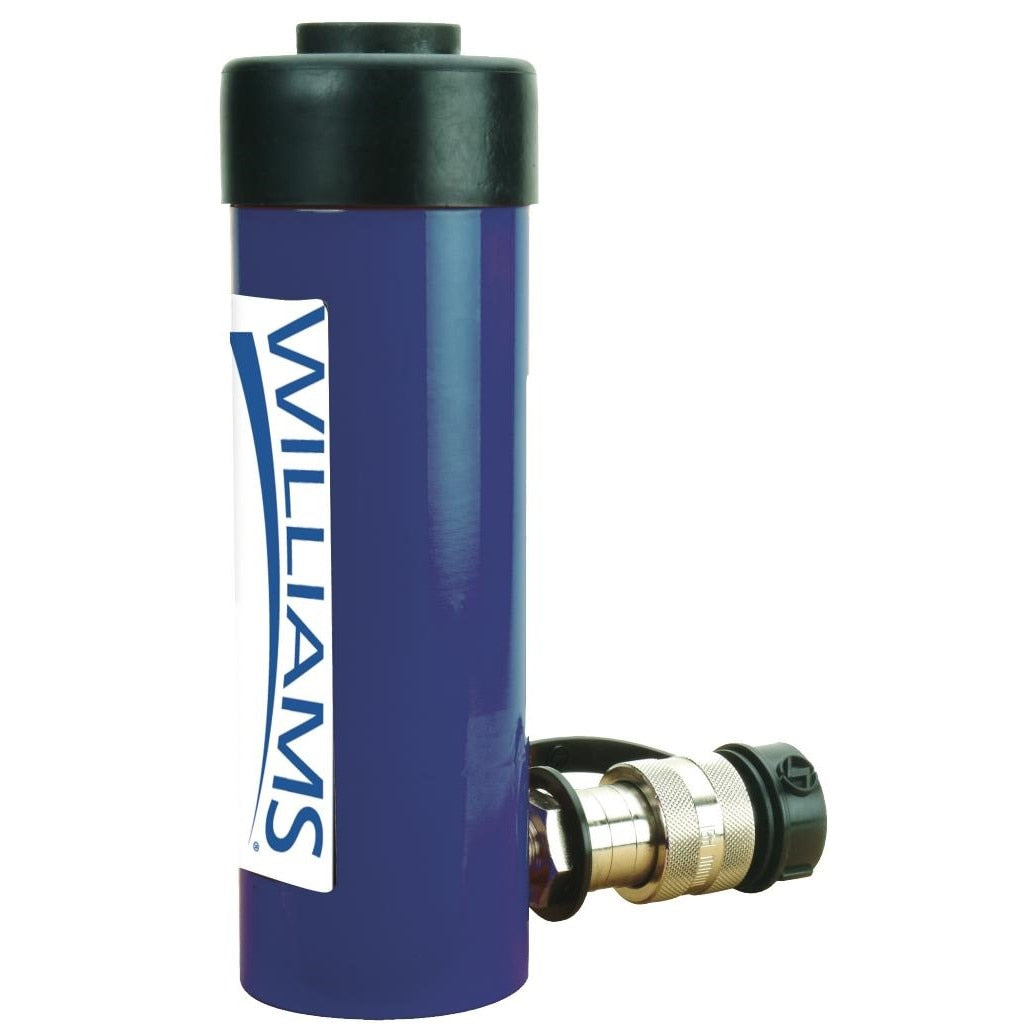

Williams Comfort Products 6C25T01 Single Acting Cylinder

Product Description

The WILLIAMS COMFORT PRODUCTS 6C25T01 is a single acting cylinder with a 1-inch bore, designed for use in hydraulic and pneumatic control applications common to HVAC and mechanical systems. Single acting cylinders use pressurized fluid or air on one side of the piston to generate linear force in one direction, with a spring or gravity return on the opposite stroke. At 12.844 pounds, the 6C25T01 is a substantial component suited for damper actuators, valve operators, and similar control mechanisms. Licensed HVAC and mechanical contractors are the primary installers of this type of cylinder.

The 6C25T01 is used in commercial and industrial control systems where linear actuation is required for a single-direction power stroke. Typical applications include pneumatic damper control, valve actuation, and mechanical positioning systems found in larger HVAC installations and building automation environments. The 1-inch bore size makes this cylinder appropriate for moderate-force actuation tasks where a compact form factor is needed alongside reliable single-direction performance.

Key Features

• Single acting design delivers powered stroke in one direction with passive return
• 1-inch bore size suitable for moderate-force linear actuation tasks
• Sold individually as a single unit replacement or new-installation component
• Substantial construction at 12.844 pounds indicating heavy-duty build quality

Compatibility

Designed as an OEM-style replacement or direct-fit cylinder for single acting hydraulic and pneumatic control assemblies requiring a 1-inch bore cylinder.

Installation Notes

Installation should be performed by a licensed HVAC or mechanical contractor familiar with pneumatic and hydraulic control systems. Depressurize the system and isolate all fluid or air supply lines before removing or installing the cylinder. Verify port alignment, mounting orientation, and return-spring tension match the original equipment specifications before returning the system to service. Follow all applicable mechanical and building codes for the jurisdiction where the work is performed.

Technical Specifications

• Bore Size: 1 inch
• Actuation Type: Single Acting
• Weight: 12.844 pounds
• Unit of Measure: Each
• Minimum Order Quantity: 1
• UPC: 662459922830

Standard Information

• Brand: WILLIAMS COMFORT PRODUCTS
• Manufacturer Part Number: 6C25T01
