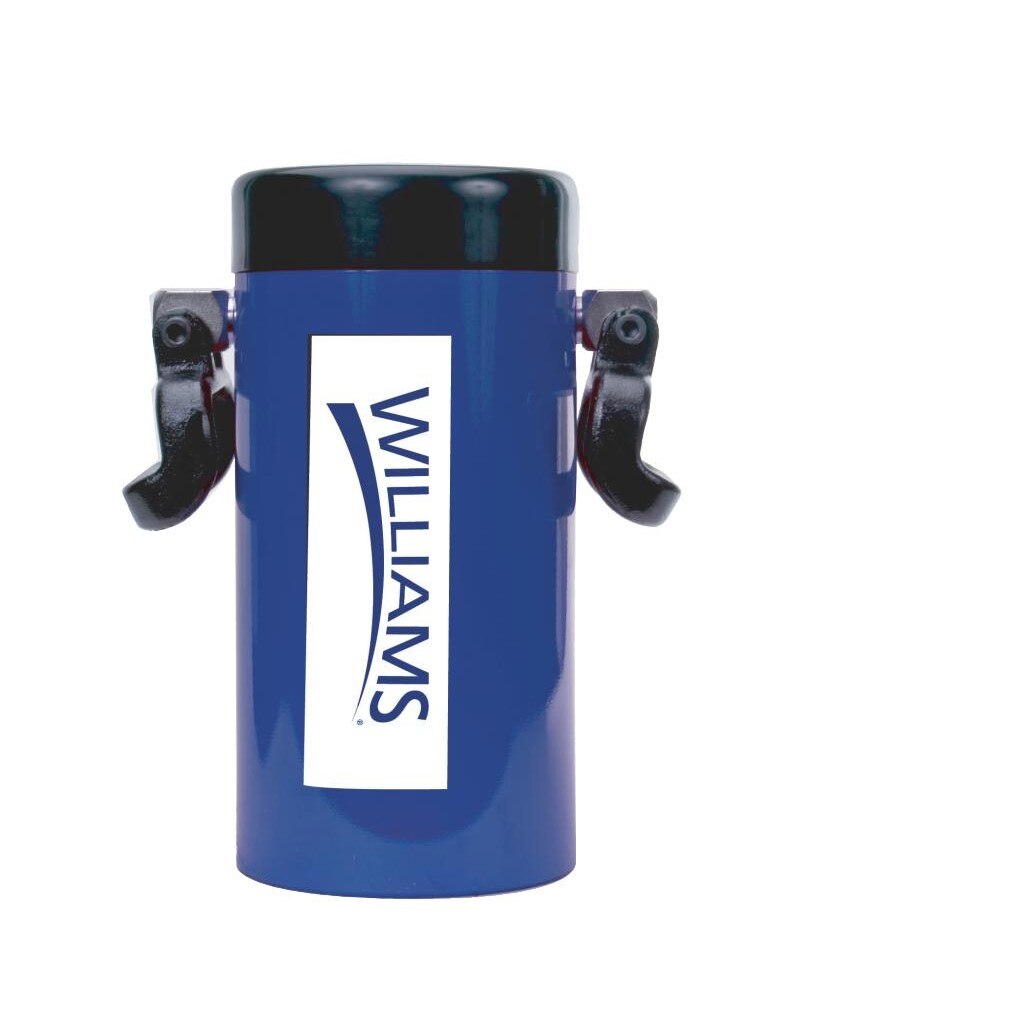

Williams Comfort Products 6C15T01 Single Acting Cylinder

Product Description

The WILLIAMS COMFORT PRODUCTS 6C15T01 is a single-acting cylinder designed for fluid and pneumatic control applications in mechanical systems. Single-acting cylinders use pressure on one side of the piston to generate force in one direction, with a spring or gravity return completing the cycle. This configuration makes the 6C15T01 suitable for damper actuators, valve operators, and similar applications where controlled linear motion is required. At 7.306 pounds, this is a solid, installation-ready unit. The 1-inch female port connection provides a standard threaded interface for integration into existing piping or pneumatic line assemblies. Installation is typically performed by licensed HVAC technicians or mechanical contractors.

The 6C15T01 is suited for commercial and industrial mechanical systems where single-acting pneumatic or hydraulic cylinder assemblies are specified. Typical install scenarios include damper control, valve actuation, and similar applications in HVAC and building automation systems. The 1-inch female port accommodates standard pipe thread connections, making field integration straightforward in new or retrofit installations.

Key Features

• Single-acting cylinder design with one-directional pressure-driven stroke and passive return
• 1-inch female port connection for standard threaded pipe integration
• Solid construction at 7.306 pounds for durability in mechanical applications
• Sold individually (each) with a minimum order quantity of 1

Compatibility

Designed as an OEM-style replacement or direct-install single-acting cylinder for HVAC, damper, and valve actuation applications requiring a 1-inch female port connection.

Installation Notes

Installation should be performed by a licensed HVAC technician or mechanical contractor familiar with pneumatic or hydraulic cylinder assemblies. De-pressurize the system and isolate all fluid or air supply lines before removing or installing the cylinder. Verify that the 1-inch female port thread type matches the mating fitting or pipe thread specification before final assembly. Follow applicable mechanical and HVAC codes for the jurisdiction.

Technical Specifications

• Port Connection: 1 inch female
• Cylinder Action: Single acting
• Weight: 7.306 pounds
• UPC: 662459922755

Standard Information

• Brand: WILLIAMS COMFORT PRODUCTS
• Manufacturer Part Number: 6C15T01
