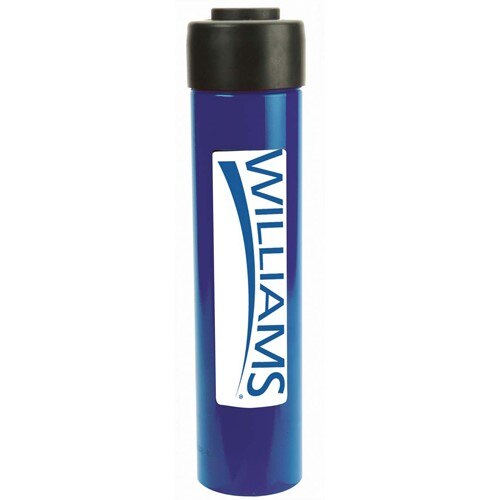

Williams Comfort Products 6C10T10 Single Acting Cylinder

Product Description

The WILLIAMS COMFORT PRODUCTS 6C10T10 is a single acting cylinder with a 10-inch stroke, designed for use in pneumatic and mechanical actuator applications across commercial and industrial systems. Single acting cylinders use pressurized fluid or air on one side of the piston to produce motion in one direction, with a return spring or gravity completing the cycle. At 13.497 pounds, this is a robust component suited for demanding service environments. Licensed mechanical contractors and industrial maintenance technicians are the primary installers of this type of actuator hardware.

This cylinder is appropriate for use in systems requiring controlled linear actuation over a 10-inch range of travel. Typical applications include damper actuators, valve operators, and mechanical control linkages found in commercial HVAC and building automation systems. Its single acting design simplifies plumbing by requiring only one pressure line, making it well suited for applications where a spring return or gravity return on the unpowered stroke is acceptable and preferred.

Key Features

• Single acting design requires only one pressure connection, reducing plumbing complexity
• 10-inch stroke length accommodates larger travel range actuator applications
• Weighs 13.497 pounds, indicating heavy-duty construction for demanding service
• Sold as an individual unit, suitable for direct replacement or new installation

Compatibility

Designed as an OEM-style replacement or new-installation single acting cylinder for pneumatic and mechanical actuator assemblies requiring a 10-inch stroke.

Installation Notes

Installation should be performed by a licensed mechanical or HVAC contractor familiar with pneumatic or hydraulic actuator systems. Depressurize the system fully before disconnecting or installing any cylinder to prevent injury from stored pressure. Verify that mounting hardware, port fittings, and stroke alignment are confirmed before pressurizing the installed assembly. Follow all applicable local mechanical codes and manufacturer guidelines during installation.

Technical Specifications

• Stroke Length: 10 inches
• Cylinder Action: Single Acting
• Weight: 13.497 pounds
• Unit of Measure: Each
• Minimum Order Quantity: 1

Standard Information

• Brand: WILLIAMS COMFORT PRODUCTS
• Manufacturer Part Number: 6C10T10
