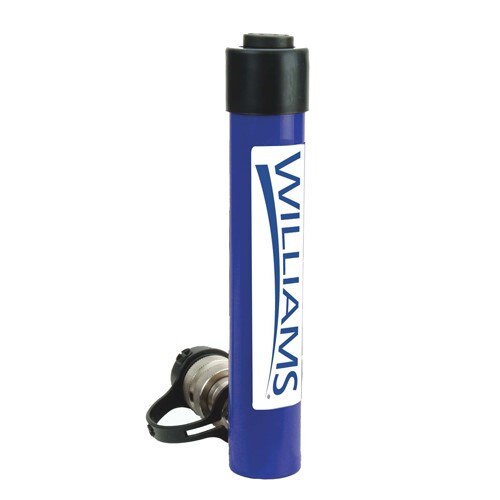

Williams Comfort Products 6C05T05 Single Acting Cylinder

Product Description

The WILLIAMS COMFORT PRODUCTS 6C05T05 is a single acting cylinder with a 5-inch stroke, designed for use in pneumatic or mechanical control applications found in HVAC and building automation systems. Single acting cylinders use pressure on one side of the piston to produce motion in one direction, with a return spring providing the opposing stroke. This unit weighs 4.365 pounds and ships as an individual component. It is typically installed by licensed HVAC technicians or building controls technicians working on pneumatic actuator systems.

This cylinder is suited for residential and light commercial HVAC control applications where a single acting pneumatic or mechanical actuator is required. The 5-inch stroke length accommodates damper, valve, or actuator linkage arrangements common in zone control and air handling unit applications. Consult system documentation to confirm stroke length and force requirements before installation.

Key Features

• Single acting design with 5-inch stroke for controlled unidirectional motion
• Compact and self-contained cylinder configuration
• Weighs 4.365 pounds for straightforward field handling
• Sold individually as a single unit

Compatibility

Designed as an OEM-style replacement single acting cylinder for HVAC pneumatic and mechanical control systems requiring a 5-inch stroke actuator component.

Installation Notes

Installation should be performed by a qualified HVAC or building controls technician. De-energize or depressurize the system and shut off any associated pneumatic supply before removing or installing the cylinder. Verify that the cylinder stroke, mounting orientation, and linkage travel match the application requirements before placing the system back in service. Follow all applicable local mechanical codes during installation.

Technical Specifications

• Stroke Length: 5 inches
• Acting Type: Single Acting
• Weight: 4.365 pounds
• Unit of Measure: Each
• Minimum Order Quantity: 1
• UPC: 662459922625

Standard Information

• Brand: WILLIAMS COMFORT PRODUCTS
• Manufacturer Part Number: 6C05T05
