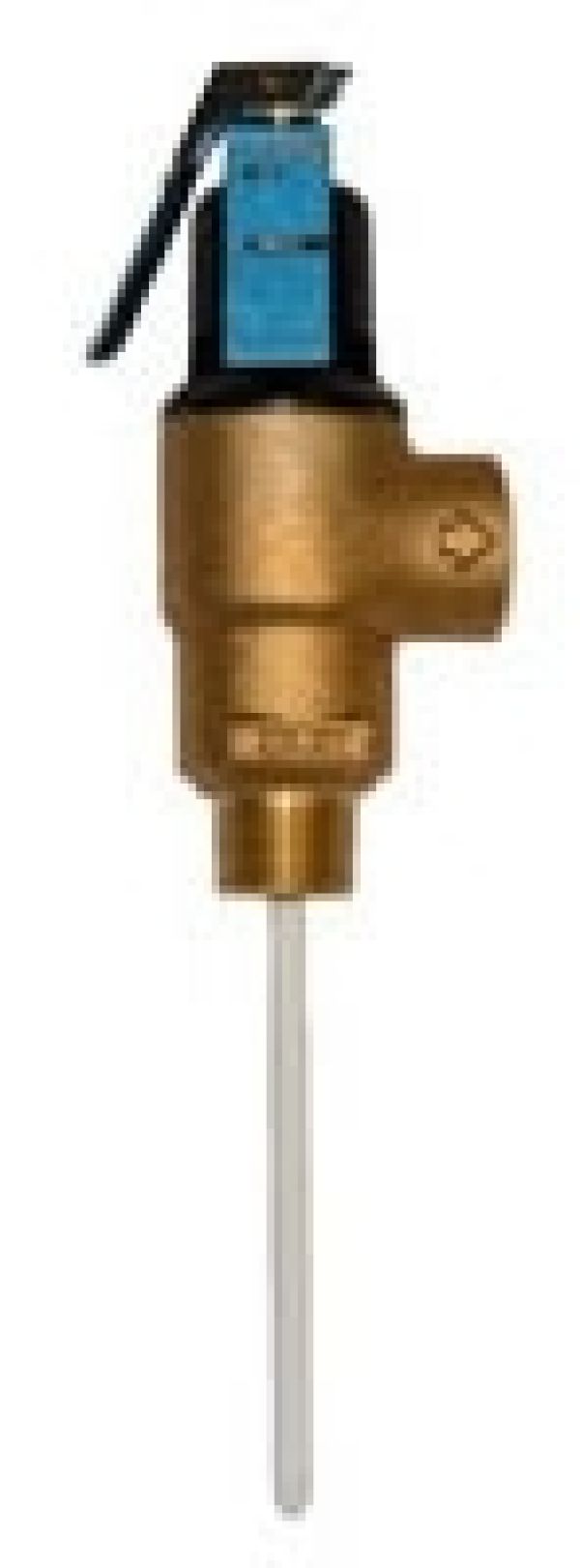

WILKINS TP220-5C-150C T&P Relief Valve 3/4 In 150 psi

Product Description

The Wilkins TP220-5C-150C is a temperature and pressure relief valve. It is intended for use on commercial water heaters. This valve helps prevent over-temperature and excessive pressure. It features a three-quarter inch MNPT inlet and a three-quarter inch FNPT outlet connection.

• Pressure rating of 150 psi
• Temperature rating of 210 degrees Fahrenheit
• Constructed of durable cast brass or bronze

Product Highlights

This relief valve ensures safety in hot water systems. It offers reliable protection against potentially dangerous conditions.

Product Information

Standard Information

• Brand: Wilkins
• MPN: TP220-5C-150C

Technical Specifications

• Inlet Connection Size: 3/4 In.
• Outlet Connection Size: 3/4 In.
• Product Depth: 3.5 In.
• Product Height: 5.5 In.
• Product Width: 2.5 In.
• Series: TP220
• Nominal Size: 3/4 In.
• End Style: MNPT x FNPT
• Pressure Rating: 150 psi
• Temperature Rating: 210 Deg F
• Probe Length: 5 In.
• Media: Water
• Body Material: Cast Brass/Bronze
• Trim Material: Stainless Steel Spring Trim
• Capacity: 205000 BTU/Hour (ANSI Z21.22/CSA 4.4)
• Connection Type: MNPT x FNPT
• End Connection: Male Threaded x Female Threaded
• Softgoods Material: Silicone
• Spring Material: ASTM A313 Stainless Steel
