Product Description

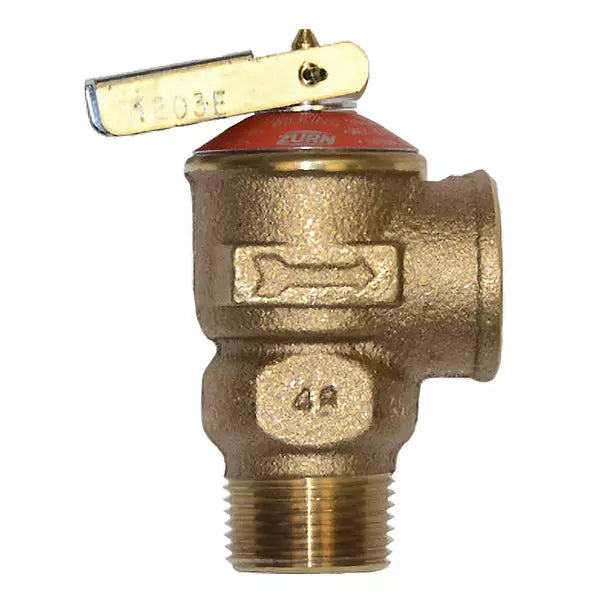

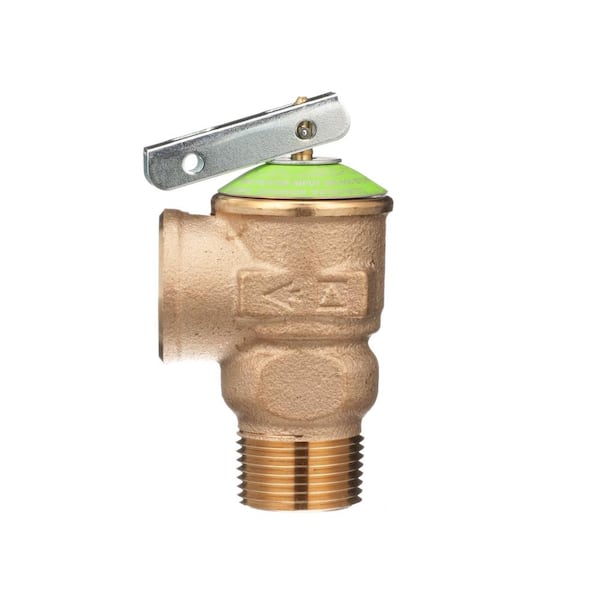

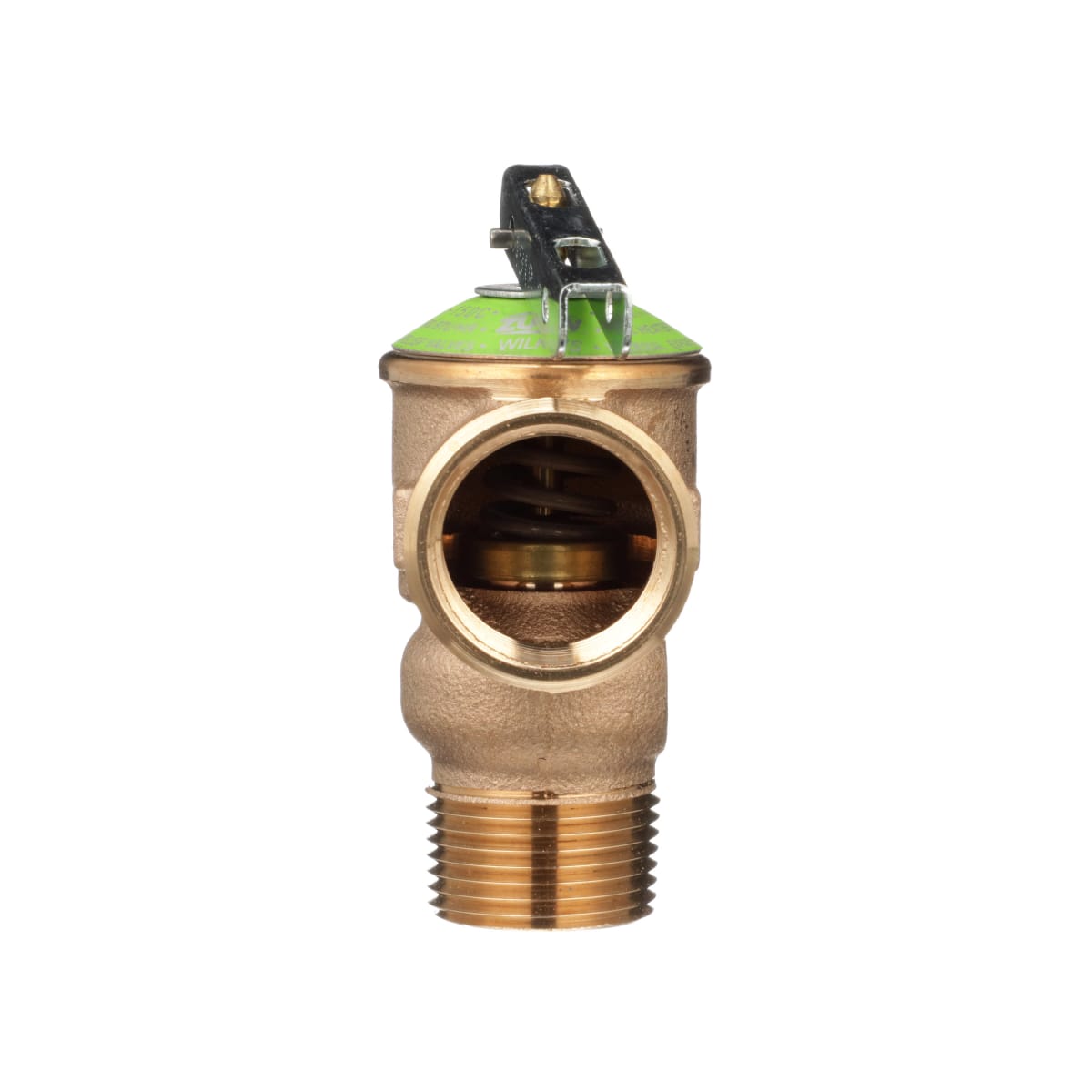

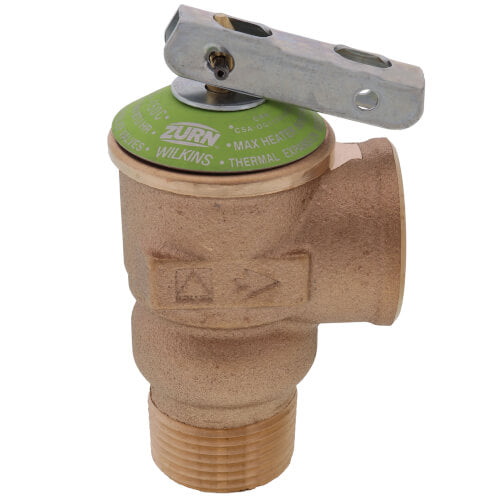

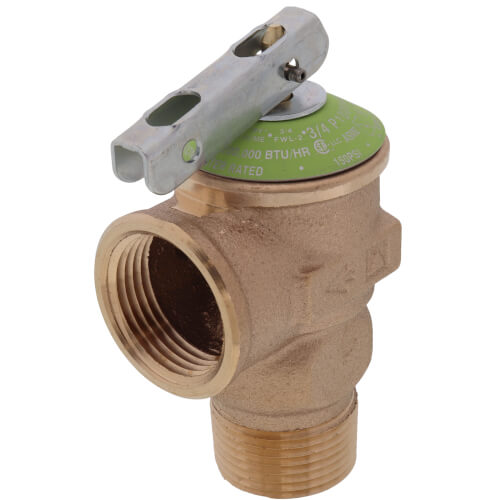

The WILKINS P1000AXL-150C Pressure Relief Valve is set at 150 psi and utilized on water heating storage vessels for protection against over-temperature or excessive pressure (not for steam service). Primarily used on storage tanks, P1000AXL materials include cast brass or bronze for the main valve body.
- Eliminates risk of over-pressure of storage tanks
- Epoxy-coating adds extra protection
- Pressure relief valve set at 150 psi
Product Highlights
This valve has CSA Compliance to ANSI Z21.22/CSA 4.4 and is certified to ASME Section IV by National Board.
Product Information
Standard Information
-
Brand: WILKINS
-
Manufacturer Part Number: P1000AXL-150C
-
Country of Origin: United States
Technical Specifications
-
Application: Residential, Commercial
-
Size: 3/4"
-
Material: Bronze
-
Pressure Set Point: 150 psi
-
ASME Rating (BTU/HR): 500000
-
Capacity: 500000 BTU/hr
-
CSA Rating (BTU/HR): 200000
-
Connection Type: Threaded
-
Inlet Type: MNPT
-
Outlet Type: FNPT
-
ASME: Yes
-
ANSI: ANSI Z21.22
-
ASTM: ASTM A-313, ASTM B-16, ASTM B-36, ASTM B-584
-
CSA Certified: CSA 4.4
-
Collection: P1000AXL
-
Color Finish Name: Cast Bronze
-
End Connection 1: MNPT
-
End Connection 2: FNPT
-
End Connections: MNPT x FNPT
-
Fitting Size 1: 3/4
-
Fitting Size 2: 3/4
-
Lead Law Compliance Level: Lead Law Compliant and Certified
-
Lead Law Compliant: Yes
-
Maximum Temperature: 250
-
NSF Certified: Yes
-
Origin: Global
-
Pressure - Maximum: 150 psi
-
Pressure Class: 150#
-
Recommended Valve Application: Water
-
UPC: 612052231754
-
Valve Body Material: Cast Bronze
-
Valve Body Style: Angle
-
Valve Material: Cast Bronze
-
Valve Seat Material: Stainless Steel
-
Valve Size: 3/4 in
-
Valve Type: Pressure Relief Valve
-
Brand: Zurn Wilkins
-
Body Material: Cast Brass/Bronze
-
End Style: MNPT x FNPT
-
Inlet to Outlet Length: 1-13/16 in
-
Nominal Size: 3/4 in
-
Top to Inlet Center: 1-5/8 in
