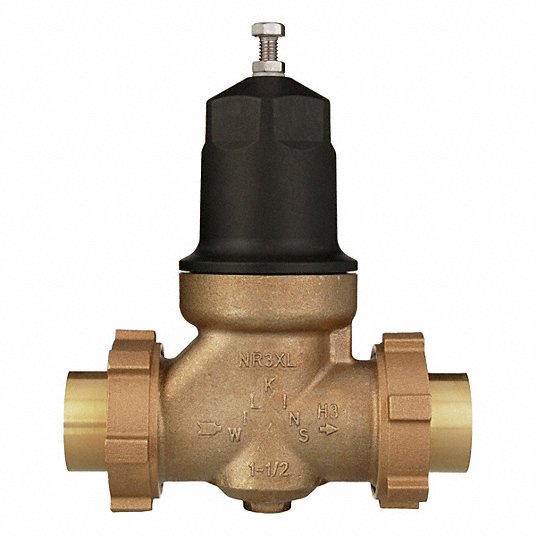

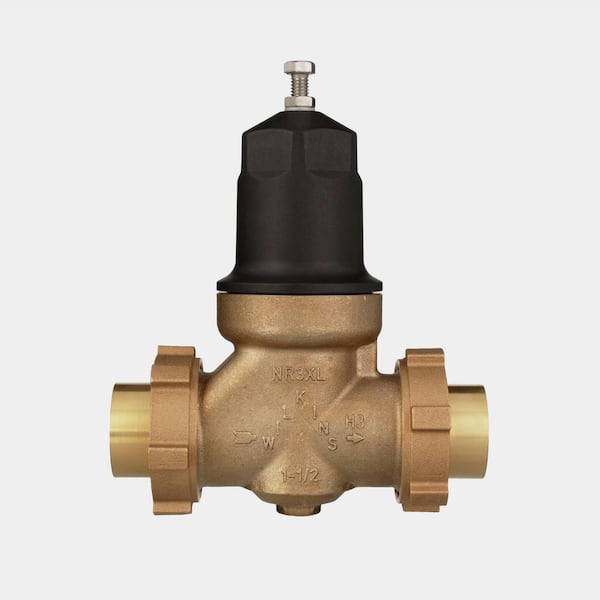

Wilkins NR3XLDUC-112 NR3XL Series Lead Free PRV (Double Union x Solder)

Product Description

The Wilkins NR3XLDUC-112 is a lead-free pressure reducing valve designed for installation on potable water lines. It reduces high inlet pressure to a lower outlet pressure. The integral strainer is suitable for residential and commercial water systems requiring frequent cleaning of sediment and debris. The direct acting integral by-pass design prevents buildup of excessive system pressure caused by thermal expansion.

• Lead Free
• Pressure Reducing Valve
• Double Union x Solder
• Integral strainer

Product Highlights

Ideal for residential and commercial water systems. Protects plumbing systems and reduces water consumption.

Product Information

Standard Information

• Brand: WILKINS
• Manufacturer Part Number: NR3XLDUC-112
• Country of Origin: China

Technical Specifications

• Model: NR3XLDUC - 1 1/2"
• Manufacturer: Wilkins
• Allow Overnight Shipping: No
• Inlet Diameter (In.): 1-1/2
• Body Material: Cast Bronze
• Dimensions: 8-1/2 in H
• End Style: Double Union FNPT x Female C Union
• Inlet to Outlet Length: 7-1/2 in
• Media: Water
• Nominal Size: 1-1/2 in
• Pressure Range: 300 psi
• Series: NR3XL
• Softgoods Material: Buna Nitrile/EPDM Elastomers
• Temperature Rating: 140 deg F
• Trim Material: Brass Stem/302 Stainless Steel Spring
• Application: Residential
• Use: Connections
• Union Type: Double
• Inlet Connection Size: 1-1/2 in
• Outlet Connection Size: 1-1/2 in
• Seat Material: EPDM
• Disc Material: Elastomer
• Coating/Lining: NSF Listed Fusion Bonded Epoxy Lining and Coating
• Pressure Adjustment Range: 25 psi to 75 psi
• Operating Pressure Range: 25 psi to 300 psi
• Max. Operating Temperature: 140 °F
• Factory Set Pressure: 50 psi
• Max. Continuous Flow Rate: 77.4 gpm
• Port Design: Full Port
• Overall Width: 8-5/16 in
• Overall Height: 4-13/16 in
• Includes Strainer: Strainer Included
• Low-Lead Compliance: Low-Lead Compliant
• NSF Certifications for Food and Drinking Water: NSF 61
• Standards: ASSE 1003; CSA; IAPMO
