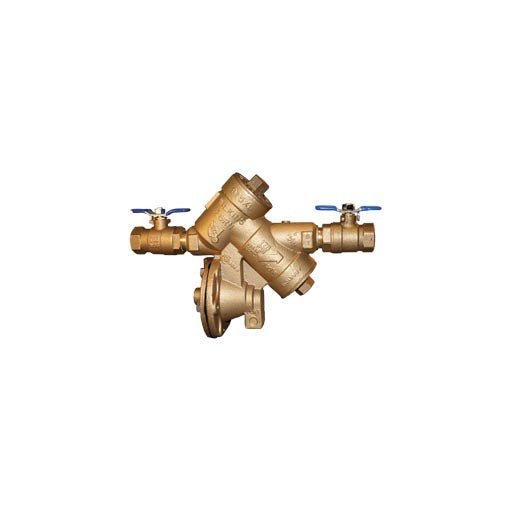

Wilkins 975XL3-34 975XL 3/4 inches Reduced Pressure Backflow Preventer

Product Description

The Wilkins 975XL3-34 975XL 3/4" Reduced Pressure Principle (RPZ) Backflow Preventer is engineered for high-hazard protection where cross-connection control is required. Its short-lay, wye-pattern design and cast bronze body make it a compact, serviceable choice for irrigation and non-potable water applications. The assembly protects potable supplies from backsiphonage and backpressure.

• Engineered for high-hazard protection where cross-connection control is required.
• Short-lay, wye-pattern design and cast bronze body make it a compact, serviceable choice for irrigation and non-potable water applications.
• Protects potable supplies from backsiphonage and backpressure

Product Highlights

Minimize installation and maintenance time with separate access to each check valve and the relief valve. Replaceable seats and rubber repair kits available. Meets ASSE 1013 and is listed to common certifications.

Product Information

Standard Information

• Brand: WILKINS
• Manufacturer Part Number: 975XL3-34

Technical Specifications

• Nominal size: 3/4" (FNPT connections)
• Body material: Cast bronze with corrosion-resistant internals
• Maximum working pressure: 175 psi
• Temperature range: 33°F to 180°F (typical)
• Design: Wye-pattern, short lay-length for compact installations
• Serviceability: Separate access to each check valve and the relief valve; replaceable seats and rubber repair kits available
• Approvals & listings: ASSE 1013 and common industry listings (UL, CSA, IAPMO, AWWA where applicable)
