Wilkins 975XL2-2 975XL2 Series Lead Free RP

Product Description

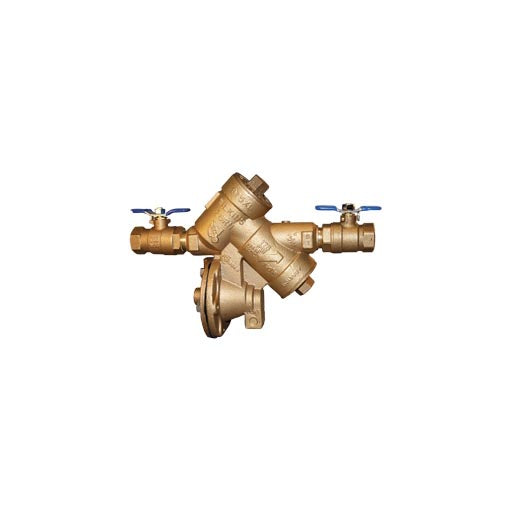

The WILKINS 975XL2-2 is designed for installation on potable water lines, protecting against backsiphonage and backpressure. This 2-inch RPZ (Reduced Pressure Zone) backflow preventer features a cast bronze body and stainless steel internals, engineered for high-hazard protection in irrigation, fire protection, and non-potable water applications.

• Lead Free
• Reduced Pressure Zone Assembly
• Cast bronze body

Product Highlights

The 975XL2-2 backflow preventer offers separate access to each check and the relief valve, reducing service time and simplifying routine testing and repairs.

Product Information

Standard Information

• Brand: WILKINS
• Manufacturer Part Number: 975XL2-2

Technical Specifications

• Model: 975XL2
• Manufacturer: Wilkins
• Nominal Size: 2 inch
• Material: Cast bronze body with stainless steel internals and FDA-approved elastomers
• Pressure Rating: Maximum working pressure 175 PSI; hydrostatic test pressure 350 PSI
• Temperature Rating: Up to 180°F (operating)
• Connections: FNPT threaded end connections (female)
• Design: Wye-pattern for short lay length and separate access to checks and relief valve
• Approvals: ASSE 1013, IAPMO, UL/c-UL, CSA, AWWA C511 (see product literature for full listings)
