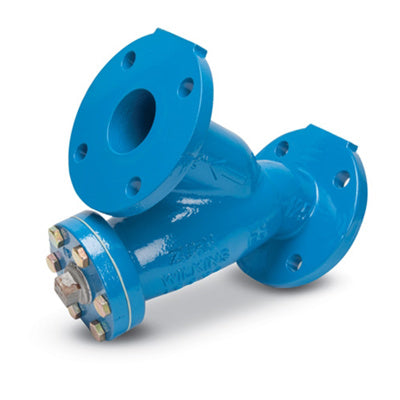

Wilkins 8-FSC 8 inches Ductile Iron Wye Strainer

Product Description

The WILKINS 8-FSC 8" Ductile Iron Wye Strainer is designed for installation on potable water lines. It protects downstream equipment from sediment and debris buildup. Constructed from cast iron, it features flange connections and an FDA-approved epoxy coating inside and out. The integral strainer screen can be easily cleaned without removing the strainer from the pipeline.

• Cast Iron Construction
• Lead Free
• FDA Coating
• Flange Connections
• Wye Strainer

Product Highlights

This Wye Strainer is ideal for large diameter backflow assemblies and features a heavy-duty perforated stainless steel screen.

Product Information

Standard Information

• Brand: WILKINS
• Manufacturer Part Number: 8-FSC

Technical Specifications

• Model: 8-FSC
• Manufacturer: Wilkins
• Main Valve Body: Cast Iron ASTM A 126 Class B
• Access Cover: Cast Iron ASTM A 126 Class B
• Coatings: FDA Approved Epoxy Finish (FSC)
• Screens: Perforated Stainless Steel, 300 Series
• Sizes: 2-1/2", 3", 4", 6", 8", 10", 12"
• Pressure / Temperature: 200 psi @ 150°F WOG / 125 psi @ 450°F Steam
• End connections: Flanged Class 125 lb
